UT-503 | UTEK Technology | RS-232 to RS-485/422 Converter (Код: )

Описание:

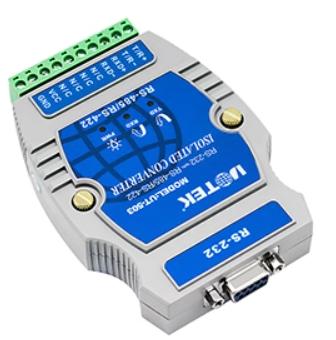

UT-503 | UTEK Technology | RS-232 to RS-485/422 Converter

Технические характеристики:

Производитель:  UTEK Technology

Обычные сроки поставки: 7-9 недель

Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками

Артикул по совпадению: UT-503

• Standards: RS-232C/ RS-485, /RS-422 EIA/TIA
• RS-232 DB9 female connector input; RS-422/485 10 bits terminal block output
• Port protection: RS-232 ±15KV ESD protection;RS-422/485 each line 600W surge, lightning protection
• Isolation: isolated voltage 2,500VRMS 500VDC
• Working mode: asynchronous half-duplex or full-duplex
• LEDs for indicating PWR TXD, and RXD activity
• Transmission media: twisted-pair or shielded cable
• Baud rate: 115.2Kbps to 300m

•    38.4Kbps to 2.4Km

                  9,600bps to 5Km

  • Dimension: 117×80×25mm
  • Operating temperature: -40℃ to 85℃
  • Relative humidity: 5% to 95 % (Non-condensing)
  • Transmission distance: 0-5,000m（115,200bps-9,600bps）
