Обзор продукта:

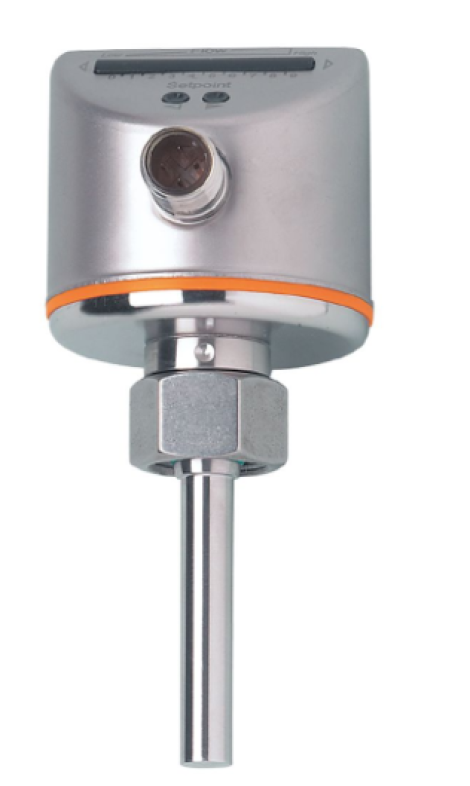

SI5100 | ifm Efector | Датчик
Технические характеристики и спецификация: SI5100
FLOW MONITOR; PNP; SWITCHING SIG
Датчики расхода - промышленные
Производитель: ifm Efector .
Каталог: Полный каталог продукции ifm Efector .
Сроки поставки: 5-8 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы ifm Efector по каталогу и аналогом:
SI5100
Технические данные:
Number of inputs and outputs Number of binary outputs: 1 Process connection threaded connection M18 x 1.5 Internal thread Total number of outputs 1 Output signal switching signal Electrical execution PNP Number of binary outputs 1 Output function normally open/closed; (parameterizable) Max. DC switching output voltage drop [V] 2.5 Load current of the DC switching output [mA] 250 Short circuit protection Yes Short circuit protection type impulse Overload protection Yes Accuracy/deviation
Repeatability [cm/s] 1...5 Tip for repeatability for water 5...100 cm/s; 25 °C Factory settings Temperature drift [cm/sx 1/K] 0.1; (for water 5...100 cm/s; 10...70 °C) Max. medium temperature gradient [K/min] 300 Switching point accuracy [cm/s] ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory settings) Hysteresis [cm/s] 2...5; (for water 5...100 cm/s; 25 °C; Factory settings) Ambient temperature [°C] -25...80 Storage temperature [°C] -25...100 Security IP 67 Tests / Approvals
EMC EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 high frequency radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 conducted HF 10V Shock resistance DIN IEC 68-2-27 50 g (11 ms) Vibration resistance DIN EN 60068-2-6 20 g (55...2000 Hz) MTTF [years] 298 UL approved UL approval number I02X Mechanical data
Weight [g] 221.85 Case cylindrical Dimensions [mm] Ø 50 / L = 113 Material Stainless steel (1.4404 / 316L); Stainless steel (1.4310 / 301); PC; PBT-GF20; EPDM/X Materials of parts in contact with the medium titanium (3.7035); O-ring: FKM 80 Shore A Process connection threaded connection M18 x 1.5 Internal thread Probe diameter [mm] 8.2 Installation length EL [mm] 45 - Аксессуары и аналоги
-
