Обзор продукта:

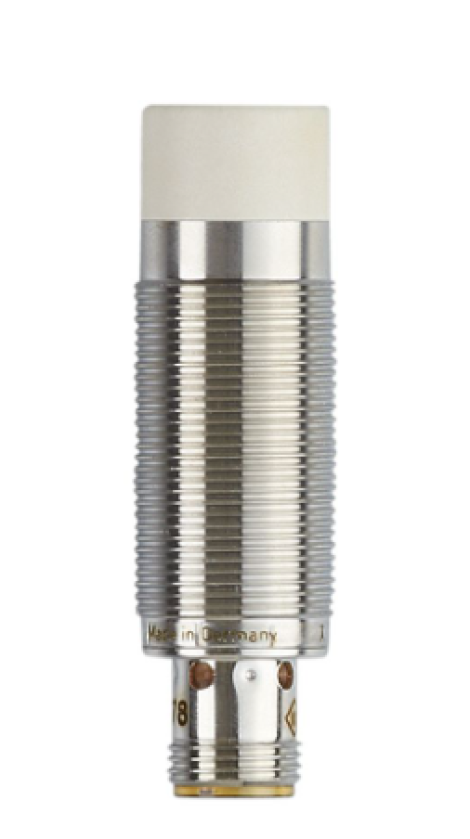

IGS291 | ifm Efector | Датчик
Технические характеристики и спецификация:
SENSOR PROX INDUCTIVE 12MM CYL
Датчики приближения - промышленные
Серия продукта: Inductive
Производитель: ifm Efector .
Каталог: Полный каталог продукции ifm Efector .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы ifm Efector по каталогу и аналогом:
IGS291
Electrical design PNP Output function normally open Sensing range[mm] 12 Housing threaded type Dimensions[mm] M18 x 1 / L = 60 Application
Special feature Gold-plated contacts; Increased sensing range; Correction factor K = 1; Magnetic-field immune Application material handling; refrigerated warehouse / shock freezing; Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation Magnetic-field immune yes Max. magnetic field immunity[mT] 300 Electrical data
Operating voltage[V] 10...30 DC Current consumption[mA] < 20 Protection class III Reverse polarity protection yes Outputs
Electrical design PNP Output function normally open Max. voltage drop switching output DC[V] 2.5 Permanent current rating of switching output DC[mA] 100 Switching frequency DC[Hz] 2000 Short-circuit protection yes Overload protection yes Detection zone
Sensing range[mm] 12 Real sensing range Sr[mm] 12 ± 10 % Operating distance[mm] 0...9.72 Increased sensing range yes Accuracy / deviations
Correction factor steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1 Hysteresis[% of Sr] 3...15 Switch point drift[% of Sr] -10...10 Correction factor K = 1 yes Operating conditions
Ambient temperature[°C] -40...85 Protection IP 65; IP 66; IP 67; IP 68; IP 69K Tests / approvals
EMC EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B Vibration resistance EN 60068-2-6 Fc 20 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes Shock resistance EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes Continuous shock resistance EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes Fast temperature change EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles Salt spray test EN 60068-2-52 Kb severity level 5 (4 test cycles) MTTF[years] 470 Embedded software included yes UL approval Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A005 File number UL E174191 Mechanical data
Weight[g] 40.5 Housing threaded type Mounting non-flush mountable Dimensions[mm] M18 x 1 / L = 60 Thread designation M18 x 1 Materials stainless steel (316L/1.4404); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (316L/1.4404) Displays / operating elements
Display switching status 4 x LED, yellow Accessories
Items supplied lock nuts: 2 Remarks
Pack quantity 1 pcs. - Аксессуары и аналоги
-
