Обзор продукта:

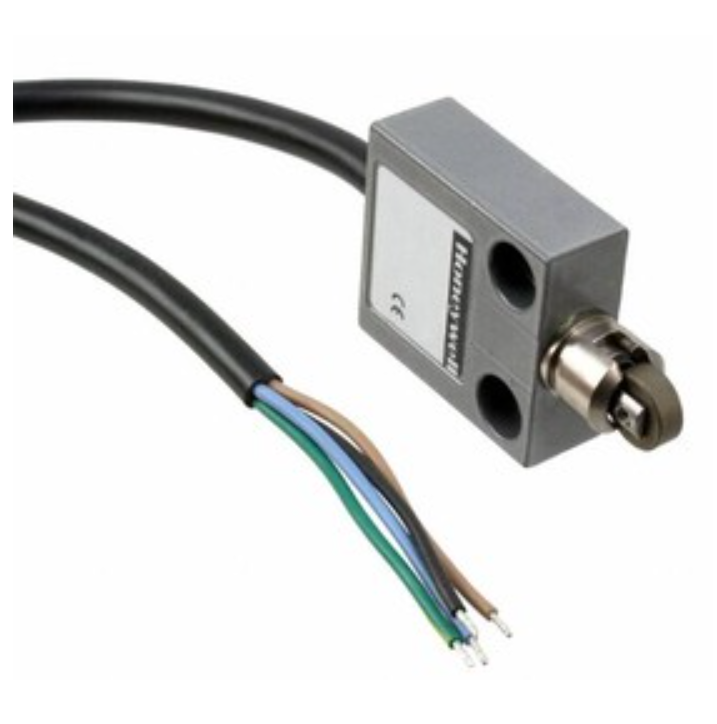

14CE2-3 | Honeywell | Выключатель
Технические характеристики и спецификация:
SWITCH SNAP ACTION SPDT 5A 250V
Концевые выключатели
Серия продукта: 14CE
Производитель: Honeywell .
Каталог: Полный каталог продукции Honeywell .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы Honeywell по каталогу и аналогом:
14CE2-3
Технические данные
Actuator Type Roller Plunger Circuit SPDT Current Rating (Amps) 5A (AC) Differential Travel 0.004"" (0.1mm) ECCN EAR99 Features Cable Length 3m HTSUS 8536.50.9055 Ingress Protection IP65 - Dust Tight, Water Resistant Mechanical Life 10,000,000 Cycles Moisture Sensitivity Level (MSL) 1 (Unlimited) Mounting Type Chassis Mount Operating Force 1200gf Operating Position 1.122"" (28.5mm) Operating Temperature 0В°C ~ 70В°C Overtravel 0.118"" (3.0mm) Package Bulk Pretravel 0.071"" (1.8mm) Release Force 450gf RoHS Status RoHS Compliant Series 14CE -> Switch Function On-Mom Termination Style Cable Leads Voltage Rating - AC 250V Action Type Snap Action Connection Type Cable Housing Material Die Cast Zinc IP Rating IP65, IP66, IP67, IP68 Maximum AC Voltage 240V Maximum Current 5A Maximum Operating Temperature +70°C Minimum Operating Temperature 0°C Normal State Configuration NO/NC Pole and Throw Configuration SPDT Width 40mm AC contacts rating @R(at resistive load)at resistive load 5A/240V AC Body material metal Connection lead 3m Contact current max. 5A Contact plating silver plated DC contacts rating @R(at resistive load)at resistive load 3A/28V DC Design bottom exit Kind of actuator oblong metal roller Ø12, 4mm Manufacturer HONEYWELL Mechanical durability 10000000 cycles Mounting holes pitch 25mm Number of mounting holes 2 Output configuration SPDT Switched voltage max.28V DC, max.240V AC Switches features snap action contacts Type of sensor limit switch - Аксессуары и аналоги
-
