Описание:

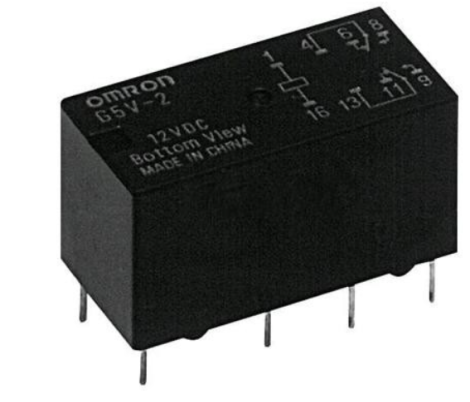

G5V-2 24DC | Omron | Реле
Технические характеристики и спецификация: G5V-2 24DC
RELAY, SIGNAL, DPDT, 30VDC, 2A; Coil Voltage:24VDC; Contact Configuration:DPDT; Contact Current:2A; Product Range:G5V-2 Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Relay Terminals:Solder; Contact Voltage VAC:125V; Contact Voltage VDC:30V; Contact Material:Silver; Coil Resistance:1.152kohm; Approval Bodies:CSA, UL; Approval Category:FCC Part 68; Approvals & Standards:CSA, UL; Coil Current:20.8mA; Coil Power Continuous:500mW; Coil Voltage VDC Nom:24V; Contact Current AC Max:500mA; Contact Current Max:2A; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:30V; External Depth:20.5mm; External Height:11.5mm; External Width:10.1mm; Operating Temperature Max:65°C; Operating Temperature Min:-25°C; Operating Time:7ms; Release Time:3ms
Производитель: Omron Electronic Components .
Каталог: Полный каталог продукции Omron Electronic Components .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы Omron Electronic Components по каталогу и аналогом:
G5V-2 24DC
Coil Current - (mA) 20.8 Coil Resistance - (Ohm) 1.152K DC Coil Voltage - (V) 24 Maximum AC Switching Voltage - (V) 125 Maximum DC Switching Voltage - (V) 125 Maximum Pick-Up Voltage 18VDC Maximum Switching Current - (A) 2 Maximum Switching Power 62.5VAI60W Minimum Dropout Voltage 1.2VDC Number of Terminals 8 Operate Time - (ms) 7 Operating Temperature - (?C) -25~65 Package Type DIP Relay Construction Non-Latching Termination Style PC Pin Вес, г 6 - Аксессуары и аналоги
-
