Обзор продукта:

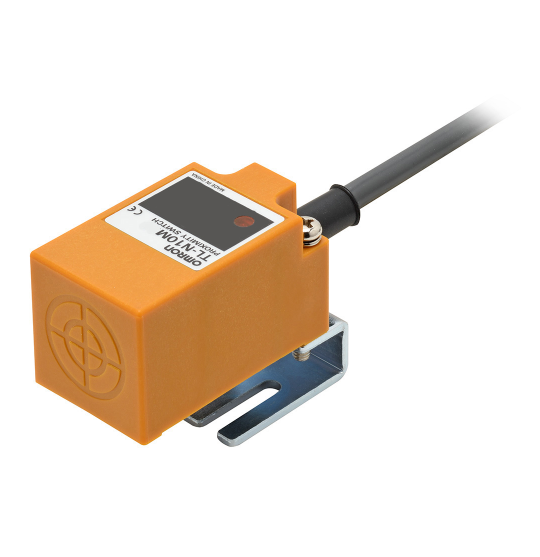

TL-N10ME2 | Omron | Датчик
Технические характеристики и спецификация:
SENSOR PROX INDUCT 10MM IP67 MOD
Датчики приближения - промышленные
Серия продукта: -
Производитель: Omron Automation .
Каталог: Полный каталог продукции Omron Automation .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы Omron Automation по каталогу и аналогом:
TL-N10ME2
Sensing head size 30 mm x 30.5 mm x 52.5 mm Type Square type, Unshielded Power source DC Three-wires models Sensing distance 10 mm ±10% Setting distance 0 to 8 mm Differential distance 15% max. of sensing distance Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.) Standard sensing object Iron 40 x 40 x 1 mm Response frequency 500 Hz (Average value) Power supply voltage 12 to 24 VDC ripple (p-p) 10% max. Operating voltage range 10 to 30 VDC Current consumption at 12 VDC: 8 mA max.
at 24 VDC: 15 mA max.Control output (Output type) NPN Control output (Switching capacity) at 12 VDC: 100 mA max.
at 24 VDC: 200 mA max.Control output (Residual voltage) 1 V max. (at 200 mA load current) Indicator Detection indicator (red) Operation mode NC Protective circuit Reverse polarity protection
Surge suppressorAmbient temperature (Operating) -25 to 70 ℃ Ambient temperature (Storage) -25 to 70 ℃ Ambient humidity (Operating) 35 to 95 % Ambient humidity (Storage) 35 to 95 % Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃ Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions Degree of protection IEC: IP67
Company standard: Oil-proofConnection method Pre-wired models (2 m) Weight Package: Approx. 240 g Material Case: Heat-resistant ABS resin
Sensing surface: Heat-resistant ABS resinAccessories Instruction manual, Mounting Bracket, Phillips mounting screw - Аксессуары и аналоги
-
