Обзор продукта:

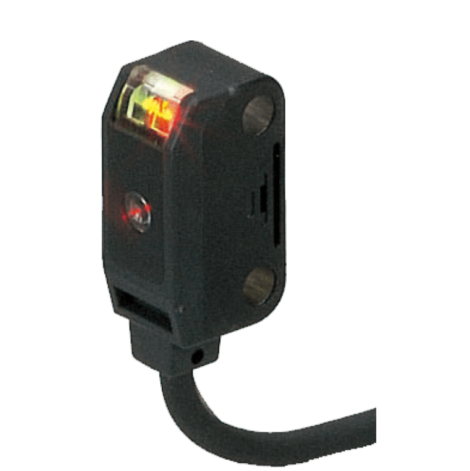

EX-23 | Panasonic | Датчик
Технические характеристики и спецификация:
SENSOR THRU-BEAM 200CM NPN DO/LO
Фотоэлектрический, Промышленный
Серия продукта: EX-20
Производитель: Panasonic .
Каталог: Полный каталог продукции Panasonic .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы Panasonic по каталогу и аналогом:
EX-23
Product Number EX-23 Part Number EX-23 Products Name Ultra-compact Photoelectric Sensor Product details Thru-beam[Side sensing] The price of the product Please contact our office Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition certification Sensing range 2 m 6.562 ft Sensing object Min. dia. 3 mm dia. 0.118 in opaque object (Setting distance between emitter and receiver: 2 m 6.562 ft) Hysteresis - Repeatability(perpendicular to sensing axis) 0.05 mm 0.002 in or less Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less Current consumption Emitter: 10 mA or less
Receiver: 10 mA or lessOutput NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)Output:Utilization category DC-12 or DC-13 Output:Short-circuit protection Incorporated Response time 0.5 ms or less Operation indicator Orange LED (lights up when the output is ON) (located on the receiver) Stability indicator Green LED (lights up under stable light received condition or stable dark condition), located on the receiver Sensitivity adjuster Continuously variable adjuster, located on the emitter Operation mode switch Located on the receiver Protection IP67 (IEC) Ambient temperature -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each Emitting element Red LED (modulated) Emitting element:Peak emission wavelength 650 nm 0.026 mil Material Enclosure: Polyethylene terephthalate
Lens: PolyalylateCable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Cable extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver). Weight Net weight (each emitter and receiver): 20 g approx
Gross weight: 60 g approxAccessory Adjusting screwdriver: 1 pc - Аксессуары и аналоги
-
