Обзор продукта:

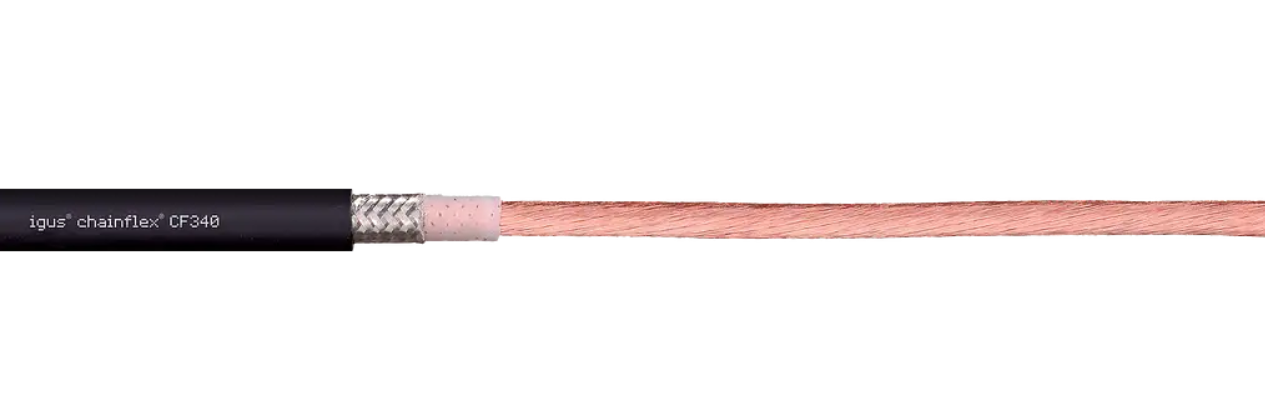

CF340.700.01 | Igus | Кабель
Технические характеристики и спецификация:
Wire: motor; chainflex® CF340; 1x70mm2; black; stranded; Cu; 17.5mm
Одножильные кабели (соединительный провод)
Серия продукта: Hook-Up
Производитель: Igus, Inc .
Каталог: Полный каталог продукции Igus, Inc .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы Igus, Inc по каталогу и аналогом:
CF340.700.01
ManufacturerIGUS Type of wiremotor Kind of wireIn case of data transmission cables Old name New name Cable screening Pair shielding UTP U/UTP none none STP U/FTP none foil FTP F/UTP foil none SSTP S/FTP braiding foil S-FTP SF/UTP braiding, foil none chainflex® CF340 Cable structure1x70mm2 Insulation colourblack Core structurestranded Kind of coreCCA Copper Clad Aluminium CCS Copper Clad Steel Cu Copper FeCrAl iron, chrome, aluminium OFC Oxygen Free Copper PMMA optical fibre acrylic glass Cu Operating temperature-35...90°C Shield structureshielded, tinned copper braid Wire insulation materialSkrót Pełna nazwa CR Neoprene ETFE Ethylene Tetrafluoroethylene EPDM Ethylene Propylene Diene Monomer FEP Fluoroethylene Butylene FHDPE High-Density Polyethylene FRNC Fire Resistant Non-Corrosive HDPE High-Density Polyethylene LSZH Low Smoke Zero Halogen MPPE Modified Polyphenylene Ether PA Polyamide PE Polyethylene PFA Perfluoroalkoxy PO Polyolefine PPO Polyphenylene oxide PTFE Polytetrafluoroethylene PUR Polyurethane PVC Polyvinyl Chloride PVC FirestoP® Fire Retardant Polyvinyl Chloride PVC TM2 Polyvinyl Chloride, Thermoplastic, Medium Impact PVDF Polyvinylidene Fluoride SBR Styrene Butadiene Rubber THHN Thermoplastic, High Heat-Resistant, Nylon-Coated TPE Thermoplastic Elastomer TPE-S Thermoplastic Elastomer Styrenic TPE-U Thermoplastic Elastomer Urethane VMQ Silicone Caoutchouc XLPE Cross-Linked Polyethylene XLPE Cross-Linked Copolymer X-FRNC Cross-Linked Flame Retardant Non-Corrosive elastomer thermoplastic TPE Cable external diameter17.5mm Number of cores1 Rated voltageFor products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U
where:
U0 = cable nominal voltage between the conductor and the metal covering or earth
U = cable nominal voltage between the phase conductors600V/1kV Core sectionSolid and stranded conductors construction according to AWG70mm2 CPR standardno classification Resistance tomineral oils, moisture, most of oils, temperature, UV rays Cable featuresself-supporting Kind of materialhalogen free Cable application- indoor
- industrial applications
- motors power 0,6/1 kV
- outdoor
- power chain
- rapid handling systems
Gross weight816 g - Аксессуары и аналоги
-
