Обзор продукта:

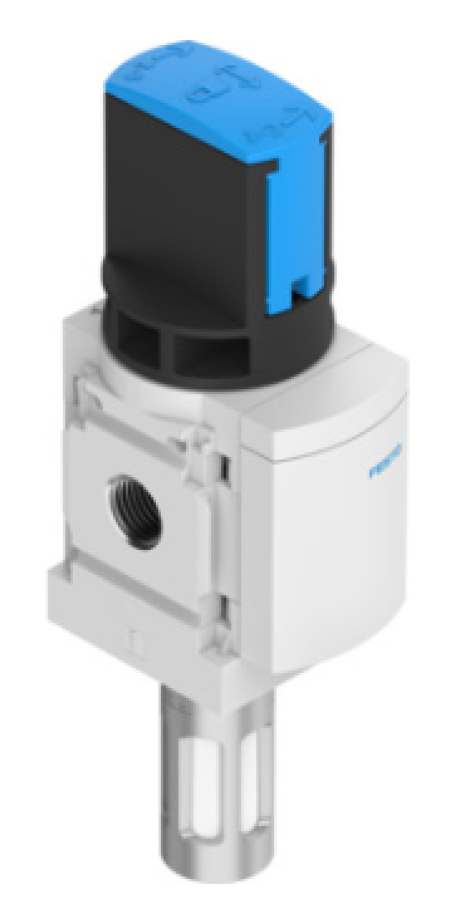

MS4-EM1-1/4 | FESTO | Клапан
Технические характеристики и спецификация:
On-off valve; 0?14bar; 3/2 bistable; 2200l/min; -10?60°C
Pneumatic connection, port 1G1/4Standard nominal flow rate (standardised to DIN 1343)2200 l/minOperating pressure0 bar - 14 barType of actuationManualКлапан и коллекторы
Серия продукта: 541258
Производитель: FESTO .
Каталог: Полный каталог продукции FESTO .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы FESTO по каталогу и аналогом:
MS4-EM1-1/4
Technical Data
- DesignRotary gate valve
- Type of actuationManual
- Exhaust-air functionWithout flow control option
- Type of pilotingDirect
- Symbol00991670
- Valve function3/2 double solenoid
- Operating pressure0 MPa ... 1.4 MPa
- Operating pressure0 bar ... 14 bar
- C value9 l/sbar
- b value0.39
- Standard nominal flow rate (standardised to DIN 1343)2200 l/min
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- Note on materialsRoHS-compliant
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C ... 60 °C
- Ambient temperature-10 °C ... 60 °C
- Suitable for use with foodSee supplementary material information
- Type of mountingEither: In-line installation With accessories
- Mounting positionoptional
- Flow directionNon-reversible
- Product weight210 g
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Pneumatic connection, port 3Not ducted
- Material sealsTPE-U(PU)
- Material housingDie-cast aluminium
