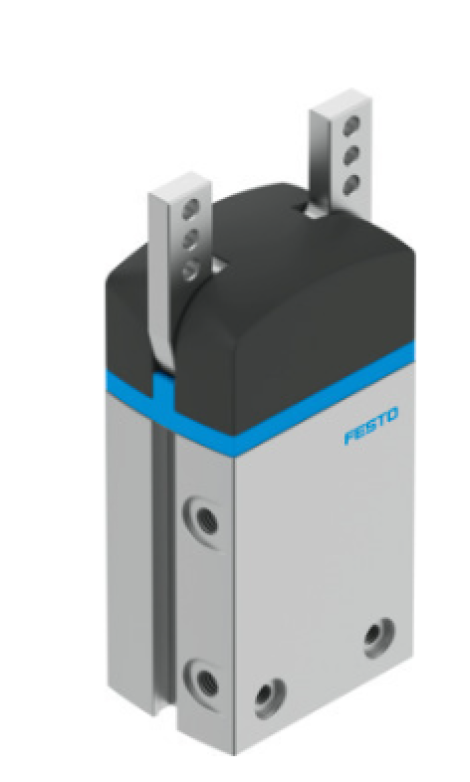

DHWS-25-A | FESTO | Захват (Код: )

Описание:

DHWS-25-A | FESTO | Захват

Технические характеристики и спецификация: DHWS-25-A

Angle gripper

• Производители →
• FESTO →
• Пневматика и гидравлика FESTO →
• Приводы FESTO →

Производитель: FESTO .

Каталог: Полный каталог продукции FESTO .

Сроки поставки: 7-9 недель

Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками

Артикулы FESTO по каталогу и аналогом:

DHWS-25-A

• Производители →

• FESTO →

• Пневматика и гидравлика FESTO →

• Приводы FESTO →

• Size25
• Max. replacement accuracy≤0.2 mm
• Max. opening angle40 deg
• Rotationally symmetrical≤0.2 mm
• Repetition accuracy, gripper≤0.04 mm
• Number of gripper jaws2
• Mounting positionoptional
• Mode of operationDouble-acting
• Gripper functionAngle
• DesignLever
• Position detectionVia proximity switch
• Symbol00991894
• Operating pressure2 bar ... 8 bar
• Max. operating frequency of gripper≤3 Hz
• Min. opening time at 0.6 MPa (6 bar, 87 psi)64 ms
• Min. closing time at 0.6 MPa (6 bar, 87 psi)80 ms
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils
• Ambient temperature5 °C ... 60 °C
• Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening386 Ncm
• Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi)356 Ncm
• Mass moment of inertia0.62 kgcm²
• Max. force on gripper jaw Fz static90 N
• Max. torque at gripper Mx static3.6 Nm
• Max. torque at gripper My static3.6 Nm
• Max. torque at gripper Mz static3.6 Nm
• Product weight258 g
• Type of mountingEither: Via female thread and centring sleeve Via through-hole and centring sleeve
• Pneumatic connectionM5
• Note on materialsRoHS-compliant
• Material cover capPA
• Material housingWrought aluminium alloy Hard anodised
• Material gripper jawsHigh-alloy steel
