Описание:

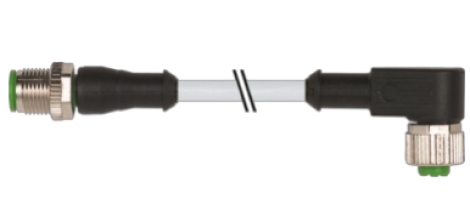

7000-40141-2350400 | MURR ELEKTRONIK | Кабель
Технические характеристики: 7000-40141-2350400
Датчики - Кабели
Производитель: MURR ELEKTRONIK .
Каталог: Полный каталог продукции MURR ELEKTRONIK .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы MURR ELEKTRONIK по каталогу и аналогом:
7000-40141-2350400
Cable length 4 m Side 1Tightening torque 0,6 Nm Mounting method inserted, screwed Family construction form M12 Thread M12 x 1 suitable for corrugated tube (internal Ø) 10 mm Coding A Material PUR Width across flats SW13 Degree of protection (EN IEC 60529) IP65, IP66K, IP67 Side 2Tightening torque 0,6 Nm Mounting method inserted, screwed Family construction form M12 Thread M12 x 1 suitable for corrugated tube (internal Ø) 10 mm Coding A Material PUR Width across flats SW13 Degree of protection (EN IEC 60529) IP65, IP66K, IP67 Electrical data | SupplyOperating voltage AC max. 125 V Operating voltage DC max. 125 V Current operating per contact max. 4 A Installation | ConnectionMounting set M12 x 1 Device protection | ElectricalAdditional condition protection degree inserted, screwed Pollution Degree 3 Rated surge voltage 1,5 kV Material group (IEC 60664-1) I Mechanical data | Material dataCoating locking Nickeled Coating of fitting nickel plated Locking material Zinc die-casting Material screw connection Zinc die-casting Mechanical data | Mounting dataMounting method inserted, screwed, Shaking protection Environmental characteristics | ClimaticOperating temperature min. -30 °C Operating temperature max. 85 °C Additional condition temperature range depending on cable quality Important installation notesNote on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. - Аксессуары и аналоги
-
