Обзор продукта:

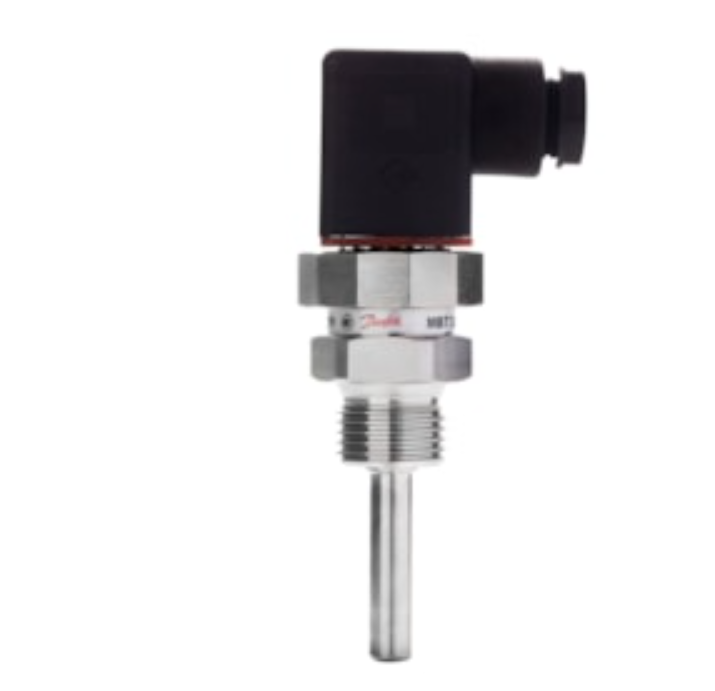

084Z2435 | DANFOSS | Датчик
Технические характеристики и спецификация:
Temperature sensor, MBT 3250, 50 mm, G,1/2084Z2435
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 TI, Electrical connection: Angular connector, Electrical connection size: Pg 9
Sensor: temperature; Pt100; cl.B; G 1/2 A; Electr.connect: PG9
Температурные датчики – термометры сопротивления
Номер по производителю DANFOSS: MBT 3250-0000-050-120
Производитель: DANFOSS .
Каталог: Полный каталог продукции DANFOSS .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы DANFOSS по каталогу и аналогом:
084Z2435
Gross weight 0.144 Kilogram Net weight 0.141 Kilogram Volume 0.149 Liter EAN 5702428970853 Type MBT 3250 Product group Sensors Product Name Description Temperature sensor Ambient temperature max. [°C] 125 °C Ambient temperature max. [°F] 257 °F CE evaluated Yes China RoHS compliance Out of scope Connection material Stainless steel Connection standard ISO 228 Connection type G Contains batteries No Electrical conn. Male/Female Male and Female Electrical connection Angular connector Electrical connection size Pg 9 Electrical connection standard EN 175301-803-A Enclosure rating IP IP65 EU RoHS compliance Yes with exemptions EU RoHS exemption clause 6(c) In scope of WEEE Yes Insertion length [in] 1.97 in Insertion length [mm] 50 mm Number of terminals [pcs] 3 pc Output signal Ohm Packing format Multi pack Process connection Male/Female Male Process connection material Stainless steel Process connection size 1/2 Process connection standard ISO 228-1-A Process connection type G Protection tube diameter [in] 0.315 in Protection tube diameter [mm] 8 mm Protection tube material AISI 316 TI Quantity per packing format 20 pc REACH Candidate List substances Lead (CAS no. 7439-92-1) SCIP dossier no. 1741c763-fa54-4cb9-973c-52e51e4079b9 Sensor elem. resistance [Ohm] 100 Ohm Sensor element [pc] 1 pc Sensor element standard EN 60751 Sensor element tolerance Class B Sensor element type Pt Sensor Insert Exchangeable Temperature range [°C] [max] 200 °C Temperature range [°C] [min] -50 °C Temperature range [°F] [max] 392 °F Temperature range [°F] [min] -58 °F Type designation MBT 3250-0000-050-120 Wires [pcs] 2 pc - Аксессуары и аналоги
-
