- Описание
-
Описание:

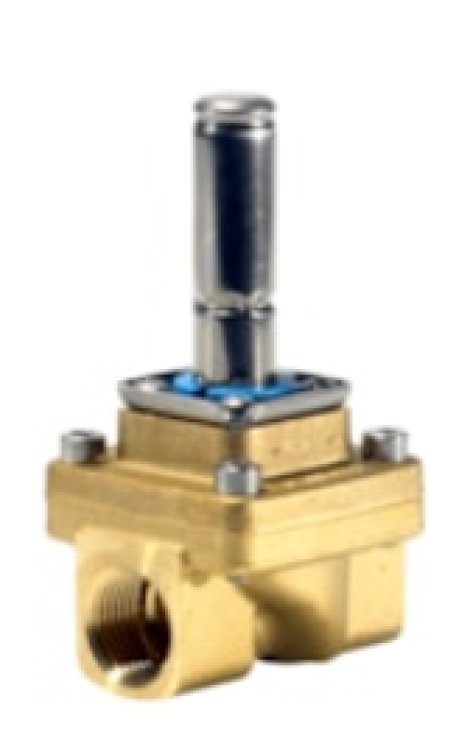

032U5352 | DANFOSS | Клапан
Технические характеристики и спецификация: 032U5352
Electromagnetic valve; G 1/2"; brass; EPDM; EV250B; Valve: 2/2 NO
Пневматика и гидравлика
Номер по производителю DANFOSS: 032U5352
Производитель: DANFOSS .
Каталог: Полный каталог продукции DANFOSS .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы DANFOSS по каталогу и аналогом:
032U5352
Type EV250B Product group Solenoid valves Product Name Description Solenoid valve Indoor/outdoor connection Intern Connection size [in] 1/2 Connection material DZR Brass Connection type G Nozzle size ratio [in] 1/2 in Drive size 13.5 mm Area of application Closed system Number of paths 2/2 Operation Forced control China RoHS compliance Out of scope Contain batteries No Cv value [gal/min] 4.6 gal/min Sealing material EPDM Differential pressure [bar] [max.] 10 bar Differential pressure [bar] [min.] 0 bar Differential pressure [psi] [max.] 145 psi Differential pressure [psi] [min.] 0 psi Nozzle size [mm] 12 mm EEE category 5 small equipment (any external dimension < 50 cm) EU RoHS compliance Yes with exemptions EU RoHS exemption clause 6(c) Fluid Group 1 function NO In scope of WEEE Yes Kv value [m³/h] 4 m³/h Max. media viscosity [cSt] 50 cSt Max. test pressure [bar] 15 bar Max. test pressure [psig] 217.5 psig Max. ambient temperature [°C] 60 °C Max. ambient temperature [°F] 140 °F Max. permissible operating pressure [bar] 10 bar Max. permissible operating pressure [psig] 145 psig Media recommendations Technical & Soft Water Media tolerance reports -30–120 °C: 0–10 bar
120–140 °C: 0–4 bar
Slightly aggressive mediumMedium temperature range [°C] [max.] 120 °C Medium temperature range [°C] [min.] -30 °C Medium temperature range [°F] [max.] 248 °F Medium temperature range [°F] [min.] -22 °F Quantity per packaging unit 24 pc Product group Solenoid valves Product name Solenoid valve Product accessories Solenoid valve accessories REACH Candidate List substances Lead (CAS no. 7439-92-1) Closing time approx., water [ms] 100 ms SCIP Dossier No. d367528f-afd7-4ce7-98d3-93a4c38934b8 SCIP dossier product name EV250B NO - solenoid valve Specific key EV250B 12BD G 12E NO000 Standard connection ISO 228-1 Actuator B Actuator size [in.] 0.53 in Actuator system [mm] 13.5 mm Share program name EV250B Type EV250B Type designation EV250B 12 Packaging unit Multi-Pack wartbar Solenoid valve spare parts Housing material DZR Brass Permit DNVGL-CG-0339
GL
PZH
SINTEFOpening time approx., water [ms] 100 ms - Аксессуары и аналоги
-
