Обзор продукта:

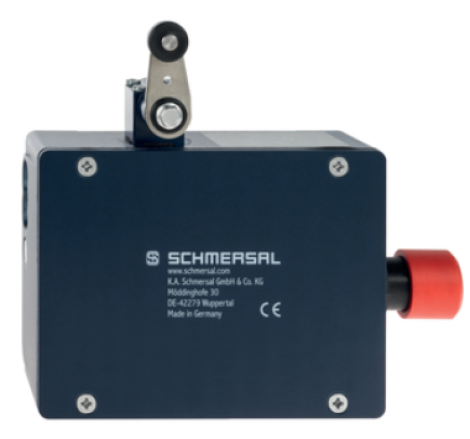

AZM 415-22XPK14H-9725 24 VAC/DC | SCHMERSAL | Переключатель
Технические характеристики и спецификация:
Safety switch: bolting
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101136087
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZM 415-22XPK14H-9725 24 VAC/DC
Ordering data
Product type description AZM 415-22XPK14H-9725 24VAC/DC
Article number (order number) 101136087
EAN (European Article Number) 4030661056104
eCl@ss number, version 12.0 27-27-26-03
eCl@ss number, version 11.0 27-27-26-03
eCl@ss number, version 9.0 27-27-26-03
ETIM number, version 7.0 EC002593
ETIM number, version 6.0 EC002593
Approvals - Standards
Certificates cULus
General data
standards BG-GS-ET-19
EN IEC 60947-5-1
Working principle electromechanical
Housing material aluminum
Housing coating material painted
Gross weight 985 g
General data - Features
Power to unlock Yes
Number of actuating directions 1
Number of auxiliary contacts 2
Number of safety contacts 2
Number of guard doors 1
Safety classification regulations EN ISO 13849-1
Mission time 20 Year(s)
Safety classification - Safety outputs
B 10D Normally-closed contact (NC) 2,000,000 operations
Mechanical data
Mechanical life, minimum 1,000,000 operations
Holding force F Zh in accordance with EN ISO 14119 3,500 N
Latching force, minimum 150 N
Latching force, maximum 400 N
Positive break travel 5 mm
Positive break force, minimum 15 N
Actuating speed, maximum 0.2 m/s
Mechanical data - Connection technique
termination Screw terminals M20 x 1.5
Cable section, minimum 2 x 0.75 mm²
Cable section, maximum 2 x 2.5 mm²
note All indications including the conductor ferrules.
Mechanical data - Dimensions
Length of sensor 50 mm
Height of sensor 120 mm
ambient conditions
degree of protection IP54
Ambient temperature -25 ... +50 °C
Note (Relative humidity) non-condensing
non-icing
Ambient conditions - Insulation values
Rated insulation voltage U i 250 VAC
Rated impulse withstand voltage U imp 4 kV
Electrical data
Thermal test current 6 A
Rated control voltage 24 VAC/DC
Utilisation category AC-15 230 VAC
Utilisation category AC-15 4 A
Utilisation category DC-13 24 VDC
Utilisation category DC-13 1 A
Electrical power consumption, maximum 10 W
Switching element NO contact, NC contact
Switching principle Slow action
Material of the contacts, electrical Silver
