Обзор продукта:

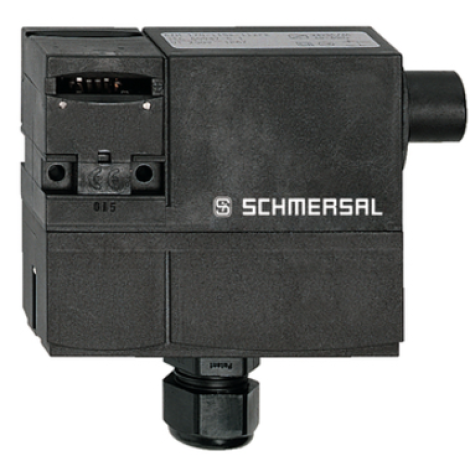

AZM 170SK-11ZRK-2197 24VAC/DC | SCHMERSAL | Переключатель
Технические характеристики и спецификация:
Safety switch: bolting; AZM 170; Number of key entry slots: 2
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101144260
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZM 170SK-11ZRK-2197 24VAC/DC
product type designation AZM 170SK-11ZRK-2197 24VAC/DC
article number (order number) 101144260
EAN (European Article Number) 4030661132082
eCl@ss number, version 12.0 27-27-26-03
eCl@ss number, version 11.0 27-27-26-03
eCl@ss number, version 9.0 27-27-26-03
ETIM number, version 7.0 EC002593
ETIM number, version 6.0 EC002593
approvals - regulations
certificates IFA
cULus
CCC
General data
regulations EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-1
coding level according to EN ISO 14119 small amount
principle of action electromechanical
housing material Plastic, glass fiber reinforced thermoplastic, self-extinguishing
gross weight 305 g
closed-circuit principle Yes
auxiliary release Yes
number of approach directions 2
number of auxiliary contacts 1
number of safety contacts 1
safety considerations
regulations EN ISO 13849-1
Performance Level, up to c
category 1
B 10D opener (NC) 2,000,000 switching cycles
Notice Electrical life on request.
B 10D Normally Open (NO) 1,000,000 switching cycles
Notice at 10% Ie and resistive load
service life 20 years
Safety consideration - safety exits
Note (B 10D Normally Open (NO)) at 10% I e and resistive load
Safety consideration - fault exclusion
Please note: Can be used if fault exclusion for dangerous damage to the 1-channel mechanics is permissible and sufficient protection against manipulation is guaranteed.
Performance Level, up to d
category 3
Notice for 2-channel use and with a suitable logic unit.
service life 20 years
Mechanical data
Mechanical life, minimum 1,000,000 switching cycles
Locking force F Zh according to EN ISO 14119 1,000 N
locking force F max , maximum 1,300 N
locking force 30 N
forced opening path 11 mm
Positive opening force per opening contact, minimum 8.5 N
positive opening force, minimum 8.5 N
operating speed, maximum 2 m/s
fastening screws
design of the fastening screws 2x M5
Tightening torque of the fastening screws for the housing cover, minimum 0.7 Nm
Tightening torque of the fastening screws for the housing cover, maximum 1 Nm
Notice Torx T10
Mechanical Data - Connection Technology
cable entry 1 x M20 x 1.5
connection type screw terminals
connection cross-section, minimum 0.25 mm²
connection cross-section, maximum 1.5 mm²
Notice All information including wire end ferrules.
Permissible type of line Rigid single-wire
Rigid multi-wire
Flexible
Mechanical Data - Dimensions
length of the sensor 30 mm
width of the sensor 108 mm
height of the sensor 100.5 mm
environmental conditions
protection class IP67
ambient temperature -25 ... +60 °C
storage and transport temperature -25 ... +85 °C
Note (Relative Humidity) non-condensing
non-icing
protection class II
Permissible installation height above sea level, maximum 2,000 m
Environmental conditions - insulation characteristics
Rated insulation voltage U i 250 VAC
Rated impulse withstand voltage U imp 4 kV
overvoltage category III
degree of contamination 3
Electrical data
rated control supply voltage 24 VAC/DC
Conditional rated short-circuit current 1,000 A
Electrical power consumption, maximum 12 W
switching element 1 normally open contact (NO), 1 normally closed contact (NC)
Note (switching element) Changeover contact with double break Zb or 2 breakers, galvanically separated contact bridges
switching principle slow action, positive opening contact
Maximum switching frequency 1,000 /h
Material of the contacts, electrical Silver
Electrical data - solenoid control
duty cycle of the magnet 100%
test pulse duration, maximum 5 ms
test pulse interval, minimum 50 ms
Electrical data - safety contacts
voltage, utilization category AC-15 230 VAC
electricity, usage category AC-15 4 A
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 4 A
Electrical data - auxiliary contacts
voltage, utilization category AC-15 230 VAC
electricity, usage category AC-15 4 A
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 4 A
