Обзор продукта:

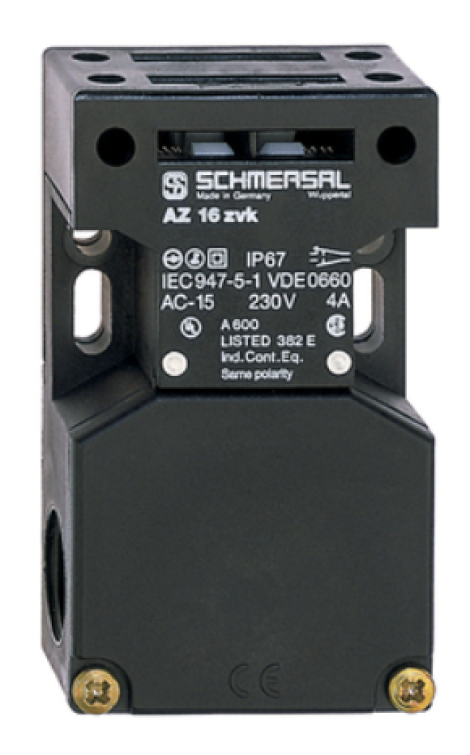

AZ 16-12ZVK | SCHMERSAL | Выключатель
Технические характеристики и спецификация: AZ 16-12ZVK
Safety switch: key operated; AZ 16; NC x2 + NO; Features: no key
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101152725
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZ 16-12ZVK
safety considerations
regulations EN ISO 13849-1
Performance Level, up to c
category 1
B 10D opener (NC) 2,000,000 switching cycles
Notice Electrical life on request.
B 10D Normally Open (NO) 1,000,000 switching cycles
Notice at 10% Ie and resistive load
service life 20 years
Safety consideration - fault exclusion
Please note: Can be used if fault exclusion for dangerous damage to the 1-channel mechanics is permissible and sufficient protection against manipulation is guaranteed.
Performance Level, up to d
category 3
Notice for 2-channel use and with a suitable logic unit.
service life 20 years
Mechanical data
Mechanical life, minimum 1,000,000 switching cycles
forced opening path 8 mm
Positive opening force per opening contact, minimum 10 N
positive opening force, minimum 20 N
operating speed, maximum 2 m/s
fastening screws
design of the fastening screws 2x M6
Mechanical Data - Connection Technology
cable entry 3 x M16 x 1.5
connection type screw terminals
connection cross-section, minimum 0.25 mm²
connection cross-section, maximum 2.5 mm²
Notice All information including wire end ferrules.
Permissible type of line Rigid single-wire
Rigid multi-wire
Flexible
length of the sensor 30 mm
width of the sensor 52 mm
height of the sensor 90 mm
environmental conditions
protection class IP67
ambient temperature -30 ... +80 °C
storage and transport temperature -40 ... +85 °C
Permissible installation height above sea level, maximum 2,000 m
Environmental conditions - insulation characteristics
Rated insulation voltage U i 500 V
Rated impulse withstand voltage U imp 6 kV
overvoltage category III
degree of contamination 3
Electrical data
Thermal continuous current 10 A
Conditional rated short-circuit current 1,000 A
switching element 1 normally open contact (NO), 2 normally closed contacts (NC)
switching principle slow action, positive opening contact
Maximum switching frequency 4,000 /h
Material of the contacts, electrical Silver
Electrical data - safety contacts
voltage, utilization category AC-15 230 VAC
electricity, usage category AC-15 4 A
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 4 A
Electrical data - auxiliary contacts
voltage, utilization category AC-15 230 VAC
electricity, usage category AC-15 4 A
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 4 A
