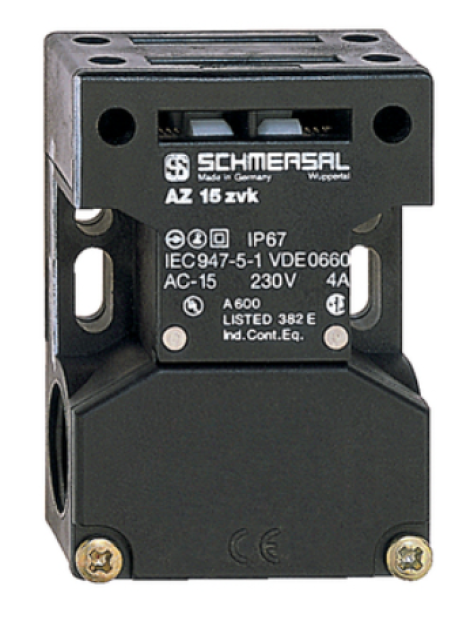

AZ 15 ZVK-M16 | SCHMERSAL | Выключатель
Технические характеристики и спецификация:
Safety switch: key operated; AZ 15; NC; Features: no key; IP67
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101152787
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZ 15 ZVK-M16
101152787
4030661166308
AZ 15 ZVK-M16
- 3 cable entries M 16 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Long life
- 52 mm x 75 mm x 30 mm
- Universal coding
- Large wiring compartment
- High level of contact reliability with low voltages and currents
- Slotted holes for adjustment, circular holes for location
- Insensitive to soiling
Ordering data
Product type description AZ 15 ZVK-M16
Article number (order number) 101152787
EAN (European Article Number) 4030661166308
eCl@ss number, version 12.0 27-27-26-02
eCl@ss number, version 11.0 27-27-26-02
eCl@ss number, version 9.0 27-27-26-02
ETIM number, version 7.0 EC002592
ETIM number, version 6.0 EC002592
General data
Standards EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-1
Coding level according to EN ISO 14119 Low
Working principle electromechanical
Housing material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight 100 g
General data - Features
Ejection force Yes
Suitable for elevators Yes
Number of safety contacts 1
Number of cable glands 3
Safety classification Standards EN ISO 13849-1
Mission time 20 Year(s)
Safety classification - Safety outputs
B10D Normally-closed contact (NC) 2,000,000 Operations
Mechanical data
Mechanical life, minimum 1,000,000 Operations
Positive break travel 8 mm
Positive break force per NC contact, minimum 10 N
Positive break force, minimum 10 N
Actuating speed, maximum 2 m/s
Mounting Screws
Type of the fixing screws 2x M6
Mechanical data - Connection technique
Cable entry 3 x M16 x 1,5
Termination Screw terminals
Cable section, minimum 0.25 mm²
Cable section, maximum 2.5 mm²
Note All indications including the conductor ferrules.
Allowed type of cable solid single-wire
solid multi-wire
flexible
Mechanical data - Dimensions
Length of sensor 30 mm
Width of sensor 52 mm
Height of sensor 75 mm
Ambient conditions
Degree of protection IP67
Ambient temperature -30 ... +80 °C
Storage and transport temperature -40 ... +85 °C
Permissible installation altitude above sea level, maximum 2,000 m
Ambient conditions - Insulation values
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 6 kV
Overvoltage category III
Degree of pollution 3
Electrical data
Thermal test current 10 A
Required rated short-circuit current 1,000 A
Switching element 1 NC contact
Switching principle slow action, positive break NC contact
Maximum switching frequency 4,000 /h
Material of the contacts, electrical Silver
Electrical data - Safety contacts
Voltage, Utilisation category AC-15 230 VAC
Current, Utilisation category AC-15 4 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 4 A
