Описание:

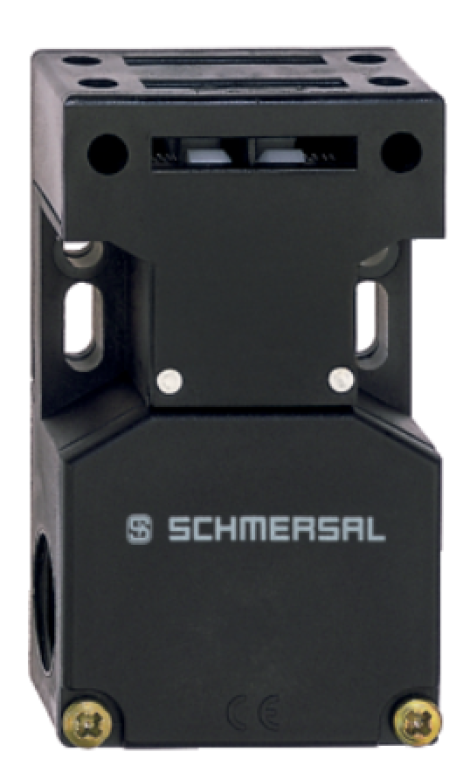

AZ 16-12ZVRK | SCHMERSAL | Выключатель
Технические характеристики: AZ 16-12ZVRK
Safety switch: key operated; AZ 16; NC x2 + NO; IP67; plastic
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101154221
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZ 16-12ZVRK
Order data
Product type designation AZ 16-12ZVRK-M16
Item number (order number) 101154221
EAN (European Article Number) 4030661171586
eCl@ss Number, Version 12.0 27-27-26-02
eCl@ss Number, Version 11.0 27-27-26-02
eCl@ss Number, Version 9.0 27-27-26-02
ETIM number, version 7.0 EC002592
ETIM number, version 6.0 EC002592
Approvals - Regulations
Certificates cULus
CCC
General data
Regulations EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-1
Coding level according to EN ISO 14119 small amount
Principle of action electromechanical
Housing material Plastic, glass fiber reinforced thermoplastic, self-extinguishing
Gross weight 120 g
General data - Properties
Number of approach directions 3
Number of auxiliary contacts 1
Number of safety contacts 2
Number of cable entries 3
Security considerations
Regulations EN ISO 13849-1
Performance Level, up to c
category 1
B 10D Opener (NC) 2,000,000 switching cycles
Notice Electrical life on request.
B 10D Normally Open (NO) 1,000,000 switching cycles
Notice at 10% Ie and resistive load
Service life 20 years
Safety consideration - fault exclusion
Please note: Can be used if fault exclusion for dangerous damage to the 1-channel mechanics is permissible and sufficient protection against manipulation is guaranteed.
Performance Level, up to d
category 3
Notice for 2-channel use and with a suitable logic unit.
Service life 20 years
Mechanical data
Mechanical life, minimum 1,000,000 switching cycles
Cogging force 30 N
Forced opening path 8 mm
Positive opening force per break contact, minimum 10 N
Positive opening force, minimum 20 N
Actuation speed, maximum 2 m/s
Fastening screws
Design of the fastening screws 2x M6
Mechanical data - connection technology
Cable entry 3 x M16 x 1.5
Connection type screw terminals
Connection cross-section, minimum 0.25 mm²
Connection cross-section, maximum 2.5 mm²
Notice All information including wire end ferrules.
Permissible type of line Rigid single-wire
Rigid stranded
Flexible
Mechanical data - Dimensions
Length of the sensor 30 mm
Width of the sensor 52 mm
Height of the sensor 90 mm
Environmental conditions
Protection class IP67
Ambient temperature -30 ... +80 °C
Storage and transport temperature -40 ... +85 °C
Maximum permissible installation height above sea level 2,000 m
Environmental conditions - insulation characteristics
Rated insulation voltage U i 500 V
