- Описание
-
Обзор продукта:

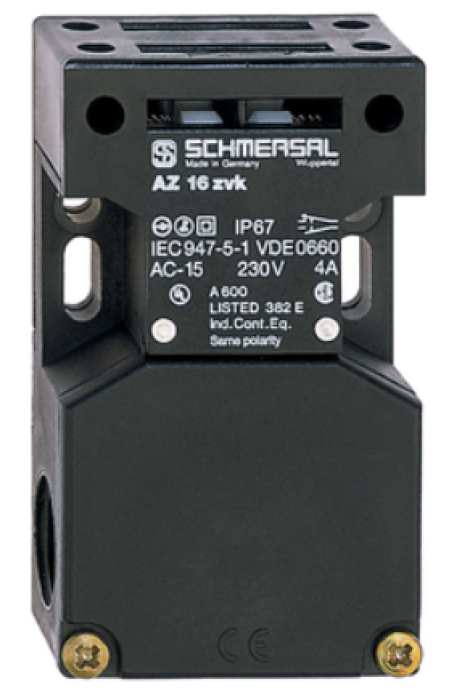

AZ 16-12ZVRK-M20 | SCHMERSAL | Выключатель
Технические характеристики и спецификация:
Safety switch: key operated; AZ 16; NC x2 + NO; IP67; plastic
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101157373
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZ 16-12ZVRK-M20
AZ16-12ZVRK-M20
Mechanical data
Mechanical life, minimum 1,000,000 Operations
Latching force 30 N
Positive break travel 8 mm
Positive break force per NC contact, minimum 10 N
Positive break force, minimum 20 N
Actuating speed, maximum 2 m/s
Mounting Screws
Type of the fixing screws 2x M6
Mechanical data - Connection technique
Cable entry 3 x M20 x 1,5
Termination Screw terminals
Cable section, minimum 0.25 mm²
Cable section, maximum 2.5 mm²
Note All indications including the conductor ferrules.
Mechanical data - Dimensions
Length of sensor 30 mm
Width of sensor 52 mm
Height of sensor 90 mm
Ambient conditions
Degree of protection IP67
Ambient temperature -30 ... +80 °C
Storage and transport temperature -40 ... +85 °C
Permissible installation altitude above sea level, maximum 2,000 m
Ambient conditions - Insulation values
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 6 kV
Overvoltage category III
Degree of pollution 3
Electrical data
Thermal test current 10 A
Required rated short-circuit current 1,000 A
Switching element 1 NO contact, 2 NC contacts
Switching principle slow action, positive break NC contact
Maximum switching frequency 4,000 /h
Material of the contacts, electrical Silver
Electrical data - Safety contacts
Voltage, Utilisation category AC-15 230 VAC
Current, Utilisation category AC-15 4 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 4 A
Electrical data - Auxiliary contacts
Voltage, Utilisation category AC-15 230 VAC
Current, Utilisation category AC-15 4 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 4 A
