Обзор продукта:

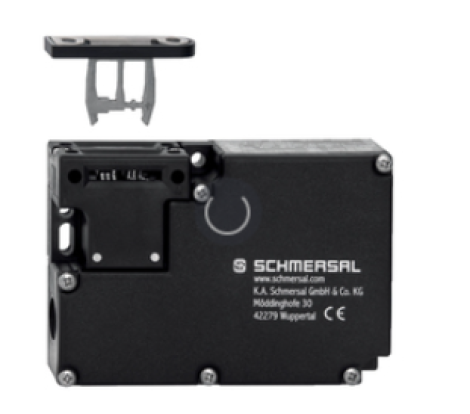

AZM 161SK-12/12RITD/EU-024-B1 | SCHMERSAL | Переключатель
Технические характеристики и спецификация:
Safety switch: bolting; AZM 161I; plastic; black
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 101216921
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZM 161SK-12/12RITD/EU-024-B1
Product type designation AZM 161SK-12/12RITD/EU-024-B1
Item number (order number) 101216921
EAN (European Article Number) 4030661409443
eCl@ss Number, Version 12.0 27-27-26-03
eCl@ss Number, Version 11.0 27-27-26-03
eCl@ss Number, Version 9.0 27-27-26-03
ETIM number, version 7.0 EC002593
ETIM number, version 6.0 EC002593
Approvals - Regulations
Certificates IFA
cULus
CCC
General data
Regulations EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-1
Coding Individual coding
Coding level according to EN ISO 14119 high
Principle of action electromechanical
Housing material Plastic, glass fiber reinforced thermoplastic
Actuator material Stainless steel
Gross weight 520 g
General data - Properties
Closed-circuit principle Yes
Escape release Yes
Auxiliary release Yes
Number of approach directions 3
Number of auxiliary contacts 2
Number of safety contacts 4
Security considerations
Regulations EN ISO 13849-1
Performance Level, up to c
category 1
B 10D Opener (NC) 2,000,000 switching cycles
Notice Electrical life on request.
B 10D Normally Open (NO) 1,000,000 switching cycles
Notice at 10% Ie and resistive load
Service life 20 years
Safety considerations - fault exclusion
Please note: Can be used if fault exclusion for dangerous damage to the 1-channel mechanics is permissible and sufficient protection against manipulation is guaranteed.
Performance Level, up to d
category 3
Notice for 2-channel use and with a suitable logic unit.
Service life 20 years
Safety considerations - locking function
Performance Level, up to e
Note (Performance Level) Information for the safety assessment of the locking function is documented in the operating instructions or in the “Operation and Installation” instructions.
Mechanical data
Actuating radius, minimum 150 mm
Mechanical life, minimum 1,000,000 switching cycles
Actuator play in actuation direction 5.5 mm
Locking force F Zh according to EN ISO 14119 2,000 N
Locking force F max , maximum 2,600 N
Cogging force 30 N
Forced opening path 10 mm
Positive opening force per break contact, minimum 10 N
Positive opening force, minimum 20 N
Actuation speed, maximum 2 m/s
Fastening screws
Design of the fastening screws 3x M6
Tightening torque of the fastening screws for the housing cover 0.6 Nm
Notice The tightening sequence for the cover screws must be observed. This can be found in the attached drawing in the "Illustrations" tab.
Mechanical data - connection technology
Cable entry 4 x M16 x 1.5
Connection type screw terminals
Connection cross-section, minimum 0.25 mm²
Connection cross-section, maximum 1.5 mm²
Notice All information including wire end ferrules.
Permissible type of line Rigid single-wire
Rigid stranded
Flexible
Mechanical data - Dimensions
Length of the sensor 30 mm
Width of the sensor 130 mm
Height of the sensor 90 mm
Environmental conditions
Protection class IP67
Ambient temperature -30 ... +60 °C
Storage and transport temperature -25 ... +85 °C
Note (Relative Humidity) non-condensing
non-icing
Protection class II
Maximum permissible installation height above sea level 2,000 m
Environmental conditions - insulation characteristics
Rated insulation voltage U i 250 VAC
Rated impulse withstand voltage U imp 4 kV
Electrical data
Thermal continuous current 6 A
Rated control supply voltage 24 VAC/DC
Conditional rated short-circuit current 1,000 A
Electrical power consumption, maximum 10 W
switching element Normally open (NO), normally closed (NC)
Switching principle Slow action, positive opening contact
Maximum switching frequency 1,000 /h
Material of contacts, electrical Silver
Electrical data - solenoid control
Duty cycle magnet 100%
Test pulse duration, maximum 5 ms
Test pulse interval, minimum 50 ms
Electrical data - safety contacts
Voltage, utilization category AC-15 230 VAC
Electricity, usage category AC-15 4 A
Voltage, utilization category DC-13 24 VDC
Electricity, usage category DC-13 2.5 A
Electrical data - Auxiliary contacts
Voltage, utilization category AC-15 230 VAC
Electricity, usage category AC-15 4 A
Voltage, utilization category DC-13 24 VDC
Electricity, usage category DC-13 2.5 A
