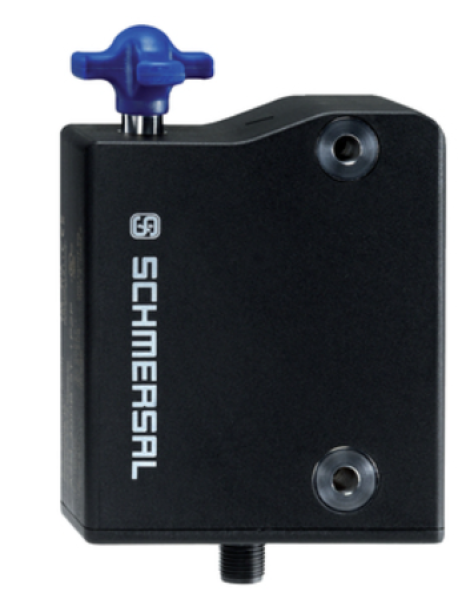

AZM300B-I2-ST-1P2P-A | SCHMERSAL | Переключатель
Технические характеристики и спецификация: AZM300B-I2-ST-1P2P-A
Safety switch: bolting; AZM 300; Number of key entry slots: 3
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 103001427
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZM300B-I2-ST-1P2P-A
Product type description AZM300B-I2-ST-1P2P-A
Article number (order number) 103001427
EAN (European Article Number) 4030661425849
eCl@ss number, version 12.0 27-27-26-03
eCl@ss number, version 11.0 27-27-26-03
eCl@ss number, version 9.0 27-27-26-03
ETIM number, version 7.0 EC002593
ETIM number, version 6.0 EC002593
Approvals - Standards
Certificates TÜV
cULus
ECOLAB
FCC
IC
UKCA
ANATEL
General data
Standards EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-3
EN IEC 61508
Coding Individual coding, multiple teaching
Coding level according to EN ISO 14119 High
Working principle RFID
Frequency band RFID 125 kHz
Transmitter output RFID, maximum -6 dB/m
Housing material Glass-fibre, reinforced thermoplastic
Duration of risk, maximum 200 ms
Reaction time, switching off safety outputs via actuator, maximum 100 ms
Reaction time, switching off safety outputs via safety inputs, maximum 1.5 ms
Gross weight 550 g
General data - Features
Power to lock Yes
Actuator monitored Yes
Latching Yes
Manual release Yes
Short circuit detection Yes
Cross-circuit detection Yes
Series-wiring Yes
Safety functions Yes
Integral system diagnostics, status Yes
Number of actuating directions 3
Number of fail-safe digital outputs 2
Safety classification Vorschriften EN ISO 13849-1
EN IEC 61508
Safety classification - Interlocking function
Performance Level, up to e
Category 4
PFH value 5.20 x 10⁻¹⁰ /h
PFD value 4.50 x 10⁻⁵
Safety Integrity Level (SIL), suitable for applications in 3
Mission time 20 Year(s)
Mechanical data
Mechanical life, minimum 1,000,000 Operations
Note (Mechanical life) When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Angular misalignment between solenoid interlock and actuator, maximum 2 °
Holding force FZh in accordance with EN ISO 14119 1,150 N
Holding force Fmax, maximum 1,500 N
Latching force, adjustable, position 1 25 N
Latching force, adjustable, position 2 50 N
Type of the fixing screws 2x M6
Tightening torque of the fixing screws, minimum 6 Nm
Tightening torque of the fixing screws, maximum 7 Nm
Mechanical data - Switching distances according EN IEC 60947-5-3
Switch distance, typical 2 mm
Assured switching distance "ON" Sao 1 mm
Assured switching distance "OFF" Sar 20 mm
Mechanical data - Connection technique
Length of sensor chain, maximum 200 m
Note (length of the sensor chain) Cable length and cross-section change the voltage drop dependiing on the output current
Note (series-wiring) Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Termination Connector M12, 8-pole, A-coded
Mechanical data - Dimensions
Length of sensor 120 mm
Width of sensor 87.5 mm
Height of sensor 35 mm
Ambient conditions
Degree of protection IP66
IP67
IP69
Ambient temperature +0 ... +60 °C
Storage and transport temperature -10 ... +90 °C
Relative humidity, maximum 93 %
Note (Relative humidity) non-condensing
non-icing
Resistance to vibrations 10 … 150 Hz, amplitude 0.35 mm
Restistance to shock 30 g / 11 ms
Protection class III
Permissible installation altitude above sea level, maximum 2,000 m
Ambient conditions - Insulation values
Rated insulation voltage Ui 32 VDC
Rated impulse withstand voltage Uimp 0.8 kV
Overvoltage category III
Degree of pollution 3
Electrical data
Operating voltage 24 VDC -15 % / +10 % (stabilised PELV power supply)
No-load supply current I0, typical 100 mA
Current consumption with magnet ON, average 200 mA
Current consumption with magnet ON, peak 350 mA / 200 ms
Rated operating voltage 24 VDC
Operating current 800 mA
Required rated short-circuit current 100 A
External wire and device fuse rating 2 A gG
Time to readiness, maximum 5,000 ms
Switching frequency, maximum 0.5 Hz
Utilisation category DC-12 24 VDC / 0.05 A
Electrical fuse rating, maximum 2 A
Electrical data - Magnet control
Designation, Magnet control IN
Switching thresholds -3 V … 5 V (Low)
15 V … 30 V (High)
Current consumption at 24 V 10 mA
Magnet switch-on time 100 %
Test pulse duration, maximum 5 ms
Test pulse interval, minimum 40 ms
Classification ZVEI CB24I, Sink C0
Classification ZVEI CB24I, Source C1
C2
C3
Electrical data - Safety digital inputs
Designation, Safety inputs X1 and X2
Switching thresholds −3 V … 5 V (Low)
15 V … 30 V (High)
Current consumption at 24 V 5 mA
Test pulse duration, maximum 1 ms
Test pulse interval, minimum 100 ms
Classification ZVEI CB24I, Sink C1
Classification ZVEI CB24I, Source C1
C2
C3
Electrical data - Safety digital outputs
Designation, Safety outputs Y1 and Y2
Design of control elements short-circuit proof, p-type
Voltage drop Ud, maximum 2 V
Leakage current Ir, maximum 0.5 mA
Voltage, Utilisation category DC-12 24 VDC
Current, Utilisation category DC-12 0.25 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 0.25 A
Test pulse interval, typical 1000 ms
Test pulse duration, maximum 0.5 ms
Classification ZVEI CB24I, Source C2
Classification ZVEI CB24I, Sink C1
C2
Electrical data - Diagnostic outputs
Designation, Diagnostic outputs OUT
Design of control elements short-circuit proof, p-type
Voltage drop Ud, maximum 2 V
Voltage, Utilisation category DC-12 24 VDC
Current, Utilisation category DC-12 0.05 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 0.05 A
Status indication
Note (LED switching conditions display) Operating condition: LED green
Error / functional defect: LED red
Supply voltage UB: LED green
Pin assignment
PIN 1 A1 Supply voltage UB
PIN 2 X1 Safety input 1
PIN 3 A2 GND
PIN 4 Y1 Safety output 1
PIN 5 OUT Diagnostic output
PIN 6 X2 Safety input 2
PIN 7 Y2 Safety output 2
PIN 8 IN Solenoid control
Scope of delivery
Scope of delivery Actuator must be ordered separately.
Accessory
Recommendation (actuator) AZ/AZM300-B1
