Обзор продукта:

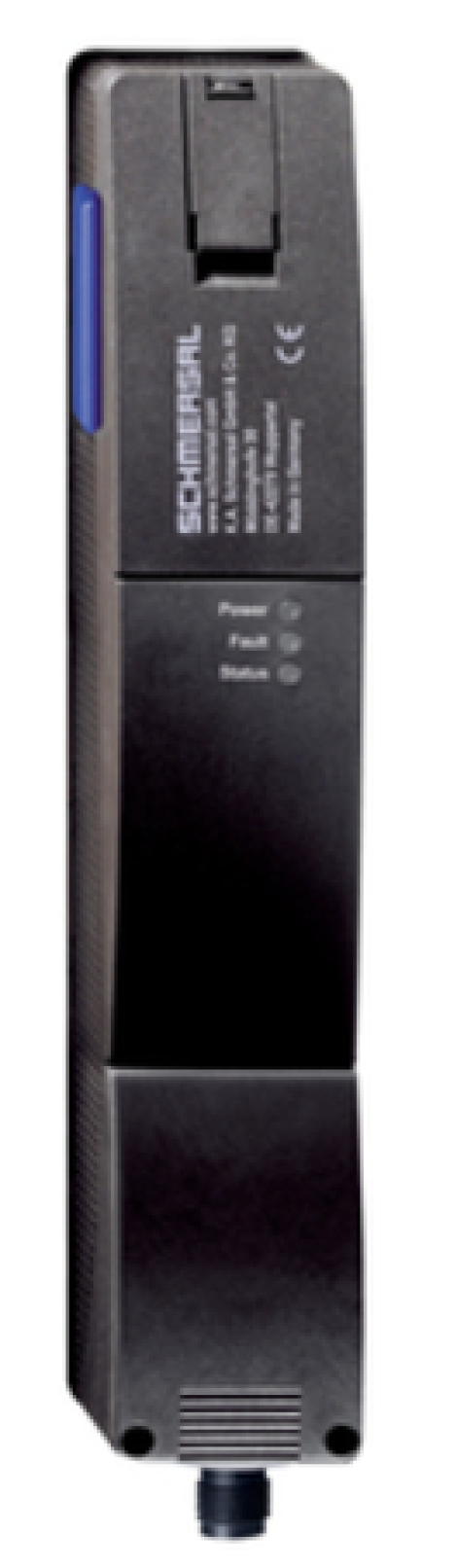

AZM201Z-ST2-T-1P2PW | SCHMERSAL | Соленоидный замок, электронный RFID
Технические характеристики и спецификация:
AZM201Z-ST2-T-1P2PW Соленоидный замок, электронный RFID, винтовые клеммы, питание для блокировки
Стандартные защитные выключатели
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZM201Z-ST2-T-1P2PW-A
-
product type designation AZM201Z-ST2-T-1P2PW
article number (order number) 103013909
EAN (European Article Number) 4030661493374
eCl@ss number, version 12.0 27-27-26-03
eCl@ss number, version 11.0 27-27-26-03
eCl@ss number, version 9.0 27-27-26-03
ETIM number, version 7.0 EC002593
ETIM number, version 6.0 EC002593
approvals - regulations
certificates TÜV
cULus
FCC
IC
UKCA
ANATEL
General data
regulations EN ISO 13849-1
EN ISO 14119
EN IEC 60947-5-3
EN IEC 61508
coding Universal Coding
coding level according to EN ISO 14119 small amount
principle of action RFID
RFID frequency band 125 kHz
RFID transmission power, maximum -6 dB/m
housing material plastic, glass fiber reinforced thermoplastic
risk time, maximum 200 ms
Reaction time of the safety outputs when switched off by the actuator, maximum 100 ms
Reaction time of the safety outputs when switched off by the safety inputs, maximum 1.5 ms
gross weight 495 g
closed-circuit principle Yes
guard locking monitoring Yes
auxiliary release Yes
short-circuit detection Yes
cross-circuit detection Yes
series connection Yes
security features Yes
Integrated display, status Yes
number of safety contacts 2
safety considerations
regulations EN ISO 13849-1
EN IEC 61508
Safety consideration - locking function
Performance Level, up to e
category 4
PFH value 1.90 x 10⁻⁹ /h
PFD value 1.60 x 10⁻⁴
Safety Integrity Level (SIL), suitable for applications in 3
service life 20 years
Safety consideration - locking function
Performance Level, up to d
category 2
PFH value 1.00 x 10⁻⁸ /h
PFD value 8.90 x 10⁻⁴
Safety Integrity Level (SIL), suitable for applications in 2
service life 20 years
Mechanical data
Mechanical life, minimum 1,000,000 switching cycles
Locking force F Zh according to EN ISO 14119 2,000 N
Note (locking force F Zh ) 1,000 N in conjunction with an actuator AZ/AZM201-B30 for internal mounting.
locking force F max , maximum 2,600 N
Note (locking force F max ) 1,300 N in conjunction with an actuator AZ/AZM201-B30 for internal mounting.
locking force 30 N
operating speed, maximum 0.2 m/s
design of the fastening screws 2x M6
Tightening torque of the fastening screws, maximum 8 Nm
Tightening torque of the fastening screws for the housing cover, minimum 0.7 Nm
Tightening torque of the fastening screws for the housing cover, maximum 1 Nm
Notice Torx T10
Mechanical Data - Connection Technology
Length of the sensor chain, maximum 200 m
Note (length of the sensor chain) Cable length and cable cross-section change the voltage drop depending on the output current
Note (series connection) Number of devices unlimited, observe external line protection, max. 31 devices with serial diagnosis SD
connection type connector M12, 8-pin
Mechanical Data - Dimensions
length of the sensor 50 mm
width of the sensor 40 mm
height of the sensor 220 mm
environmental conditions
protection class IP66
IP67
ambient temperature -25 ... +60 °C
storage and transport temperature -25 ... +85 °C
Relative humidity, maximum 93%
Note (Relative Humidity) non-condensing
non-icing
fatigue strength 10 … 150 Hz, amplitude 0.35 mm
shock resistance 30 g / 11 ms
protection class III
Permissible installation height above sea level, maximum 2,000 m
Environmental conditions - insulation characteristics
Rated insulation voltage U i 32 VDC
Rated impulse withstand voltage U imp 0.8 kV
overvoltage category III
degree of contamination 3
Electrical data
operating voltage 24 VDC -15 % / +10 % (stabilized PELV power supply)
No-load current I 0 , typical 50 mA
Current consumption when magnet is ON, average value 200 mA
Current consumption when magnet is ON, peak value 700 mA / 100 ms
rated operating voltage 24 VDC
rated operating current 1,200 mA
Conditional rated short-circuit current 100 A
External line and device protection 2A gG
standby delay, maximum 4,000 ms
switching frequency, maximum 1 Hz
Electrical protection, maximum 2 A
Electrical Data - Solenoid Control
designation, magnet control IN
switching thresholds -3 V … 5 V (Low)
15 V … 30 V (High)
current consumption at 24 V 10 mA
duty cycle of the magnet 100%
test pulse duration, maximum 5 ms
test pulse interval, minimum 40 ms
Classification ZVEI CB24I, sink C0
Classification ZVEI CB24I, source C1
C2
C3
Electrical Data - Safe Digital Inputs
designation, safety inputs X1 and X2
switching thresholds −3 V … 5 V (Low)
15 V … 30 V (High)
current consumption at 24 V 5 mA
test pulse duration, maximum 1 ms
test pulse interval, minimum 100 ms
Classification ZVEI CB24I, sink C1
Classification ZVEI CB24I, source C1
C2
C3
Electrical Data - Safe Digital Outputs
designation, safety outputs Y1 and Y2
rated operating current 250 mA
design of the switching elements short-circuit proof, p-switching
Voltage drop U d , maximum 2 V
residual current I r , maximum 0.5 mA
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 0.25 A
test pulse interval, typical 1000 ms
test pulse duration, maximum 0.5 ms
Classification ZVEI CB24I, source C2
Classification ZVEI CB24I, sink C1
C2
Electrical Data - Diagnostic Outputs
designation, diagnostic outputs OUT
rated operating current 50 mA
design of the switching elements short-circuit proof, p-switching
Voltage drop U d , maximum 4 V
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 0.05 A
-
