Обзор продукта:

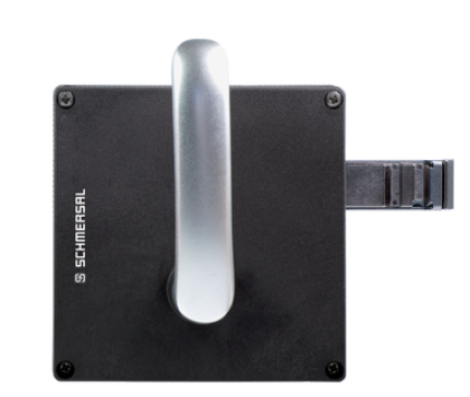

AZ/AZM201-B30-LTAG1 | SCHMERSAL | Актуатор
Технические характеристики и спецификация: AZ/AZM201-B30-LTAG1
Actuator; AZ/AZM 201; outside
Стандартные защитные выключатели
Иной номер по производителю SCHMERSAL: 103013501
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
AZ/AZM201-B30-LTAG1
product type designation AZ/AZM201-B30-LTAG1
article number (order number) 103013501
EAN (European Article Number) 4030661493497
eCl@ss number, version 12.0 27-27-26-06
eCl@ss number, version 11.0 27-27-26-06
eCl@ss number, version 9.0 27-27-26-06
ETIM number, version 7.0 EC001487
ETIM number, version 6.0 EC001487
approvals - regulations
Notice Certification in conjunction with the devices AZ/AZM201
General data
housing material plastic, glass fiber reinforced thermoplastic
material of the actuator zinc die-casting
material of the control panel aluminum, plastic-coated
gross weight 281 g
Mechanical data
Handle door handle
Mechanical life, minimum 1,000,000 switching cycles
door hinge Left
Locking force F Zh according to EN ISO 14119 2,000 N
locking force F max , maximum 2,600 N
actuator attachment Outside
Mechanical Data - Dimensions
length of the actuator 94 mm
width of the actuator 115 mm
height of the actuator 115 mm
