Обзор продукта:

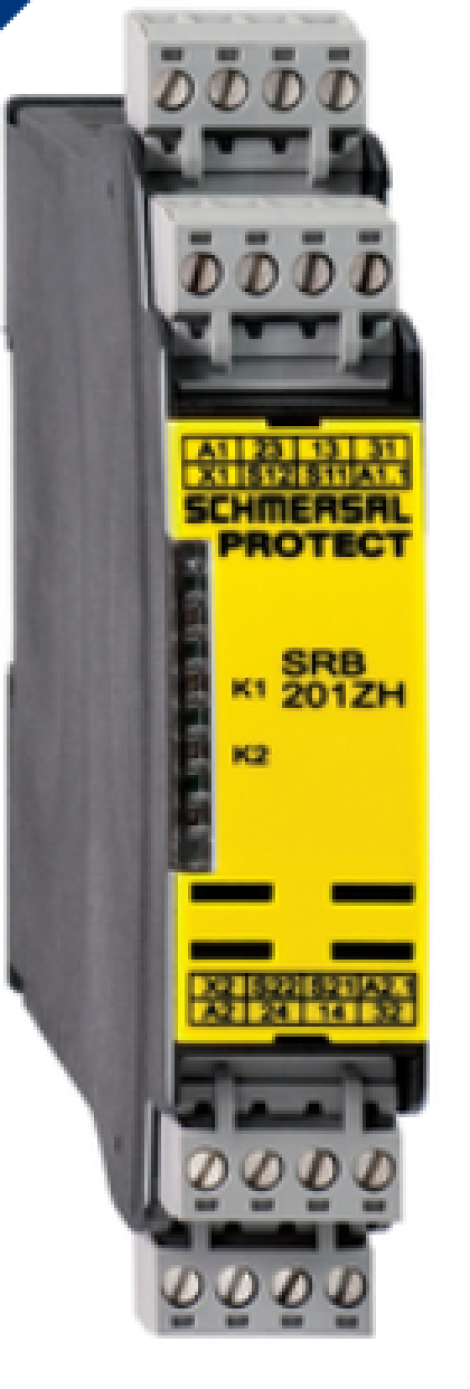

SRB201ZH 24VDC | SCHMERSAL | Модуль
Технические характеристики и спецификация:
Защитные выключатели — модули управления
Иной номер по производителю SCHMERSAL: 101163440
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
SRB201ZH 24VDC
- Monitoring two-hand control according to EN ISO 13851
- 2 safety contacts, STOP 0
- 1 Signal output
Mechanical data - Dimensions
Width 22,5 mm
Height 100 mm
Depth 121 mm
Environmental conditions
Degree of protection of the housing IP40
Degree of protection of the installation space IP54
Degree of protection of the terminals or connections IP20
Ambient temperature -25 ... +60 °C
Storage and transport temperature -40 ... +85 °C
Vibration resistance according to EN 60068-2-6 10...55 Hz, Amplitude 0,35 mm, ± 15 %
shockproof 30 g / 11 ms
Environmental conditions - Insulation parameters
Nominal impulse withstand voltage U imp 4 kV
Overvoltage category III
Pollution degree according to IEC/EN 60664-1 2
Electrical data
Frequency range 50 Hz
60 Hz
Operating voltage 24 VAC -15 % / +10 %
24 VDC -15 % / +20 %Ripple voltage 10 %
Rated operating voltage 24 VAC
Rated operating voltage 24 VDC
Nominal supply voltage at AC 50 Hz, minimum 20,4 VAC
Nominal supply voltage at AC 50 Hz, maximum 26,4 VAC
Nominal supply voltage at AC 60 Hz, minimum 20,4 VAC
Nominal supply voltage at AC 60 Hz, maximum 26,4 VAC
Nominal supply voltage at DC, minimum 20,4 VDC
Nominal supply voltage at DC, maximum 28,8 VDC
Power consumption 1.2 W
Contact resistance, maximum 0.1 Ohm
Note (contact resistance) In new condition
Power failure delay, typical 80 ms
Emergency stop delay, typical 20 ms
Delay in automatic start, typical 100 ms
Delay in RESET, typical 20 ms
Material of the contacts, electrical AgSn0. self-cleaning, forced execution
Electrical Data - Safe Relay Outputs
Voltage, usage category AC-15 230 VAC
Current, usage category AC-15 6 A
Voltage, usage category DC-13 24 VDC
Current, usage category DC-13 6 A
Switching capacity, minimum 10 VDC
Switching capacity, minimum 10 mA
Switching capacity, maximum 250 VAC
Switching capacity, maximum 8 A
Electrical data - Digital inputs
Line resistance, maximum 40 Ω
Electrical data - Relay outputs (auxiliary contacts)
Switching capacity, maximum 24 VDC
Switching capacity, maximum 2 A
