Обзор продукта:

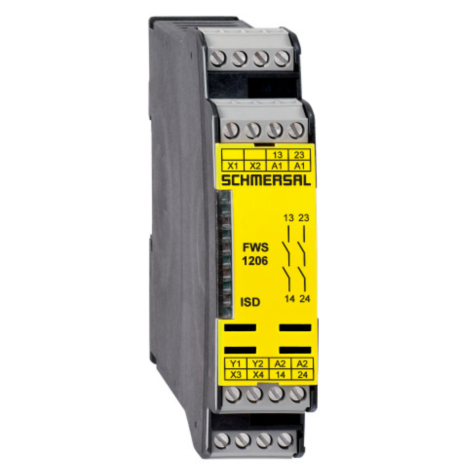

FWS1206C 24VDC | SCHMERSAL | Модуль
Технические характеристики и спецификация:
Module: safety relay
Защитные выключатели — модули управления
Иной номер по производителю SCHMERSAL: 101170058
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
FWS1206C 24VDC
FWS 1206C
Mechanical data
Mechanical life, minimum 20,000,000 Operations
Mounting Snaps onto standard DIN rail to EN 60715
Mechanical data - Connection technique
Terminal designations IEC/EN 60947-1
Termination rigid or flexible
Screw terminals M20 x 1.5
Cable section, minimum 0.2 mm²
Cable section, maximum 2.5 mm²
Tightening torque of Clips 0.6 Nm
Mechanical data - Dimensions
Width 22.5 mm
Height 100 mm
Depth 121 mm
Ambient conditions
Degree of protection of the enclosure IP40
Degree of protection of the mounting space IP54
Degree of protection of clips or terminals IP20
Ambient temperature +0 ... +55 °C
Storage and transport temperature -25 ... +70 °C
Resistance to vibrations 10 ... 55 Hz, Amplitude 0.35 mm
Restistance to shock 30 g / 11 ms
Ambient conditions - Insulation values
Rated impulse withstand voltage Uimp 4.8 kV
Overvoltage category II
Degree of pollution 3
Electrical data
Operating voltage 24 VDC -15 % / +15 %
Thermal test current 6 A
Rated operating voltage 24 VDC
Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
Rated control voltage at AC 50 Hz, maximum 26.4 VAC
Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
Rated control voltage at AC 60 Hz, maximum 26.4 VAC
Rated AC voltage for controls at DC minimum 20.4 VDC
Rated control voltage at DC, maximum 28.8 VDC
Electrical power consumption, maximum 5 W
Contact resistance, maximum 0.1 Ω
Note (Contact resistance) in new state
Material of the contacts, electrical Ag-Ni 10 and 0.2 µm gold-plated
Electrical data - Safe relay outputs
Voltage, Utilisation category AC-15 230 VAC
Current, Utilisation category AC-15 3 A
Voltage, Utilisation category DC-13 24 VDC
Current, Utilisation category DC-13 2 A
Switching capacity, minimum 10 VDC
Switching capacity, minimum 10 mA
Switching capacity, maximum 250 VAC
Switching capacity, maximum 8 A
Electrical data - Digital inputs
Input signal, HIGH Signal "1" 10 … 30 VDC
Input signal, LOW Signal "0" 0 … 2 VDC
Conduction resistance, maximum 40 Ω
Electrical data - Relay outputs (auxiliary contacts)
Switching capacity, maximum 24 VDC
Switching capacity, maximum 2 A
