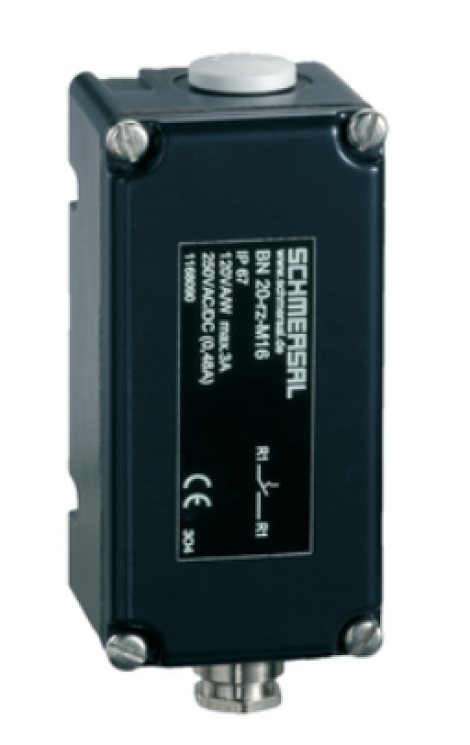

BN 20-11RZ-M16 | SCHMERSAL | Датчик
Технические характеристики и спецификация: BN 20-11RZ-M16
Reed switch; Range: 5 - 50mm; Pswitch: 120W; 52x47x104mm; -25 - 90град
Датчики и преобразователи
Иной номер по производителю SCHMERSAL: 101165310
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
BN 20-11RZ-M16
Product type description BN 20-11RZ-M16
Article number (order number) 101165310
EAN (European Article Number) 4030661208909
eCl@ss number, version 12.0 27-27-43-02
eCl@ss number, version 11.0 27-27-01-05
eCl@ss number, version 9.0 27-27-01-05
ETIM number, version 7.0 EC002544
ETIM number, version 6.0 EC002544
Approvals - Standards
Certificates cULus
General data
Standards EN IEC 60947-5-1
Working principle Magnetic drive
Housing construction form rectangular
Housing material Aluminium
Active area Metal film
Gross weight 300 g
General data - Features
bias magnet Yes
Number of snap-in contacts 2
Mechanical data
Actuating panels lateral
Active area lateral
Actuating element Magnet
Mechanical life, minimum 1,000,000,000 Operations
Actuating speed, maximum 18 m/s
Mechanical data - Switching distances according EN IEC 60947-5-3
Switching distance Sn 5 mm … 50 mm
BP 10S = 5 mm
2 x BP 10S = 10 mm
BP 20S = 15 mm
BP 31S = 15 mm
BP 11S = 5 mm
2 x BP 11S = 15 mm
BP 12S = 10 mm
BP 10N = 5 mm
2 x BP 10N = 10 mm
BP 15N = 7 mm
BP 15S = 7 mm
2 x BP 15/2N = 15 mm
2 x BP 15/2S = 15 mm
BP 34N = 10 ... 25 mm
BP 34S = 10 ... 25 mm
BP 20N = 15 mm
BP 31N = 15 mm
BP 11N = 5 mm
2 x BP 11N = 15 mm
BP 12N = 10 mm
2 x BP 12N = 5 ... 20 mm
2 x BP 12S = 5 ... 20 mm
BP 21 N = 10 ... 35 mm
BP 21 S = 10 ... 35 mm
2 x BP 21N = 15 ... 50 mm
2 x BP 21S = 15 ... 50 mm
BE 20N = 10 mm
BE 20S = 10 mm
Note (Switching distance Sn) Actuating distance up to 50 mm depending on version and actuating magnet
Repeat accuracy R 0.3 mm
Mechanical data - Connection technique
Termination Screw terminals M20 x 1.5
Mechanical data - Dimensions
Length of sensor 47 mm
Width of sensor 104 mm
Height of sensor 52 mm
Ambient conditions
Degree of protection IP67
Ambient temperature -25 ... +90 °C
Resistant to vibration 50 g, on sine wave oscillation
Electrical data
Switching voltage, maximum 250 VAC
Switching current, maximum 3 A
Switching capacity, maximum 120 W
Switching capacity, maximum 120 VA
Switching element Bistable contact, NC / NO
Bounce duration, minimum 0.3 ms
Bounce duration, maximum 0.6 ms
Maximale Schalthäufigkeit 1,080,000 /h
Electrical data - Digital Output
Design of control elements Reed contacts
Scope of delivery
Scope of delivery Actuator must be ordered separately.
Accessory
Recommendation (actuator) BP 10 S
2x BP 10 S
BP 15 S
BP 34 S
BP 20 S
BP 31 S
BP 11 S
2x BP 11 S
BP 12 S
BP 21 S
2x BP 21 S
BE 20 S
BP 10 N
2x BP 10 N
BP 15 N
2 x BP 15/2 N
2x BP 15/2 S
BP 34 N
BP 20 N
BP 31 N
BP 11 N
2x BP 11 N
BP 12 N
2x BP 12 N
2x BP 12 S
BP 21 N
2x BP 21 N
BE 20 N
Note
Note (General) The opening and closing functions depend on the direction of actuation, the actuating magnets and the polarity of the actuating magnets.
When the switches and actuators come together, the colours must coincide: Red (S) to red (S) and green (N) to green (N).
