| EF03.1 | SCHMERSAL | Аксессуар | Datasheet Инструкция (Скачать PDF) |
- Описание
-
Обзор продукта:

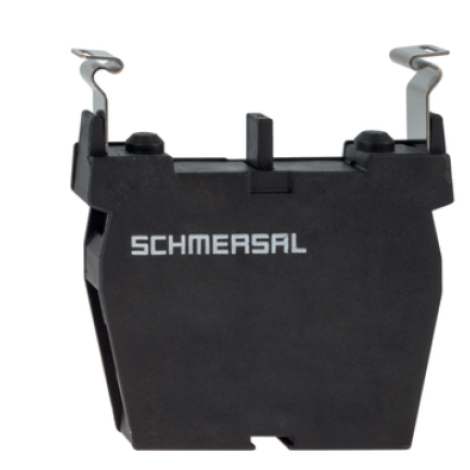

EF03.1 | SCHMERSAL | Аксессуар
Технические характеристики и спецификация:
Contact block; 22mm; EF; -25 - 80град; IP20; front fixing; Contacts: NO
Аксессуары для монтажа на панели
Иной номер по производителю SCHMERSAL: 101006538
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
EF03.1
order data
General Data - Properties
Suitable for EMERGENCY STOP Yes
number of closers 1
Mechanical data
assembly instructions attachable
Mechanical life, minimum 10,000,000 switching cycles
forced opening path 2 mm
contact opening width 3 mm
Note (bounce duration) Bounce duration at an actuation speed of 100 mm/s
mounting flange position 1
Mechanical Data - Connection Technology
connection type screw terminals
connection cross-section, minimum 0.5 mm², rigid
0.5 mm², flexible
connection cross-section, maximum 2.5 mm², rigid
1.5 mm², flexible
Notice All information including wire end ferrules.
Mechanical Data - Dimensions
length 46 mm
Width 10 mm
depth 60 mm
environmental conditions
protection class of the control room IP40
Protection class of the terminals or connections IP20
ambient temperature -25 ... +80 °C
shock resistance 110 g / 4 ms
shock resistance Shock resistance: 20 g / 10 … 200 Hz
Environmental conditions - insulation characteristics
Rated insulation voltage U i 400 V
Electrical data
Thermal continuous current 10 A
voltage, utilization category AC-15 230 VAC
electricity, usage category AC-15 8 A
Voltage, usage category DC-13 24 VDC
electricity, usage category DC-13 5 A
low-voltage suitability ≥ 5 V / ≥ 3.2 mA
switching element normally open (NO)
switching principle slow shifting
bounce duration, maximum 5 ms
Maximum switching frequency 1,200 /h
Material of the contacts, electrical Silver
