Обзор продукта:

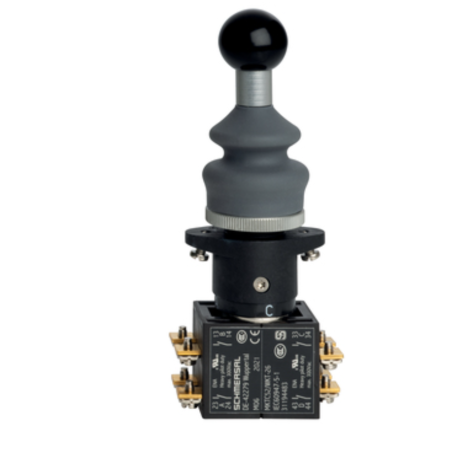

MKTC52/WKT-26 | SCHMERSAL | Переключатель
Технические характеристики и спецификация:
Switch: joystick; 22mm
Панельные переключатели, стандарт 22 мм
Иной номер по производителю SCHMERSAL: 101186703
Производитель: SCHMERSAL .
Каталог: Полный каталог продукции SCHMERSAL .
Сроки поставки: 5-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SCHMERSAL по каталогу и аналогом:
MKTC52/WKT-26
General data
Standards EN IEC 60947-5-1
EN IEC 60947-1
Installation conditions (mechanical) arbitrarily
Material of the front ring Aluminium - anodised
Material of the bellows Silicone
Material thickness of the sealing bellows 2 mm
Colour of the front ring Silver
Colour of the bellows Grey
Gross weight 160 g
General data - Features
Return to zero position Yes
External applications Yes
Galvanically separated contact bridges Yes
Probing possible Yes
Number of auxiliary contacts 4
Number of directions 4
Number of normally open (NO) per direction 1
Number of switch positions 4
Number of switching stages 4
Mechanical data
Latching position left
right
bottom
above
Mechanical life, minimum 500,000 Operations
Actuating force, approx. 11 N
Mounting Knurled nut
Mechanical data - Connection technique
Termination Screw terminals M20 x 1.5
Cable section, minimum 0.5 mm²
Cable section, maximum 2.5 mm²
Note All indications including the conductor ferrules.
Mechanical data - Dimensions
Mounting depth 70 mm
Length of the actuator 77 mm
Mounting diameter 22.3 mm
Thickness, of the front panel, minimum 1.5 mm
Thickness of the front panel, maximum 6 mm
Diameter for the Installation to EN 60947-1 22.3 + 0.4 mm
Spacing 80 x 80 mm
Ambient conditions
Degree of protection IP65
IP67
Ambient temperature -25 ... +80 °C
Resistance to vibrations 10 … 200 Hz, with 20 g
Restistance to shock 110 g / 4 ms - 30 g / 18 ms
Ambient conditions - Insulation values
Rated insulation voltage Ui 400 V
Rated impulse withstand voltage Uimp 4 kV
Degree of pollution 3
Electrical data
Thermal test current 10 A
Utilisation category AC-15 250 VAC
Utilisation category AC-15 8 A
Utilisation category DC-13 24 VDC
Utilisation category DC-13 5 A
Switching element NO contact / NO contact / NO contact / NO contact
Switching principle Slow action
Maximale Schalthäufigkeit 1,200 /h
Note
Notice (switch position) Position A, B, C, D
