Описание:

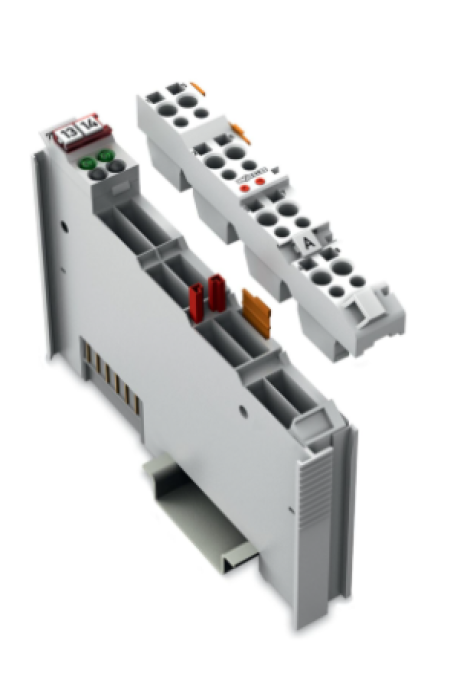

753-517 | WAGO | Модуль
Технические характеристики и спецификация: 753-517
I/O MODULE 2 DIGITAL 0-5V
Модули PLC
Серия по производителю WAGO: Output Module
Производитель: WAGO .
Каталог: Полный каталог продукции WAGO .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы WAGO по каталогу и аналогом:
753-517
Technical dataNumber of digital outputs 2 Total number of channels (module) 2 Signal type Digital Actuator connection 2 x (1-wire) Output circuit design 2 changeover contacts
RelayOutput characteristic potential-free Pull-in time (max.) 8ms Drop-out time (max.) 4ms Switching frequency (max.) 0.1 Hz; Nominal load Switching voltage (max.) 250 VAC, 300 VDC Switching current (max.) 1A Switching current (note) 1 A at 250 VAC and 40 VDC; 0.15 A at 300 VDC Switching voltage (min.) 12V Switching current (min.) 100mA Electrical switching operations (min.) (at max. resistive load) 1 x 10⁶ switching operations Mechanical switching operations (min.) (at max. resistive load) 5 x 10⁶ switching operations Output data width (internal) max. 2Bit Supply voltage (system) 5 VDC; via data contacts Current consumption (5 V system supply) 90mA Isolation 1500 V (system/field) Indicators LED (A, C) green: Status relay 1, relay 2 Connection dataConnection technology: inputs/outputs 6 x CAGE CLAMP® (outputs) Connectable conductor materials Copper Connection type 1 Output Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG Strip length 9 … 10 mm / 0.35 … 0.39 inches Physical dataWidth 12 mm / 0.472 inches Height 100 mm / 3.937 inches Depth 69.8 mm / 2.748 inches Depth from upper-edge of DIN-rail 62.6 mm / 2.465 inches Mechanical dataMounting type DIN-35 rail Pluggable connector pluggable - Аксессуары и аналоги
-
