Описание:

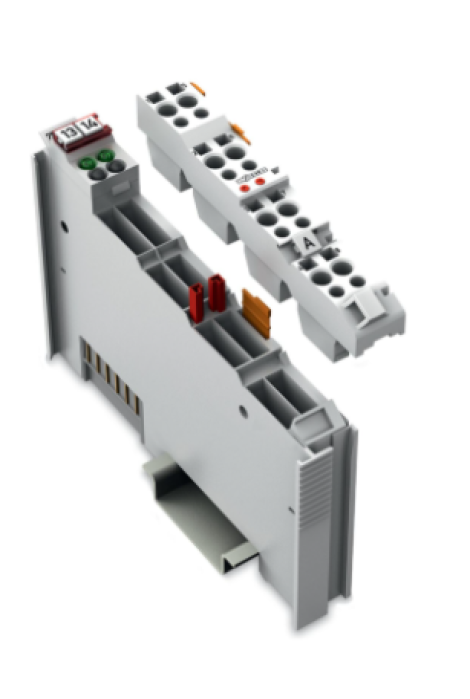

753-430 | WAGO | Модуль
Технические характеристики и спецификация: 753-430
I/O MODULE 8 DIGITAL 0-24V
Модули PLC
Серия по производителю WAGO: Input Module
Производитель: WAGO .
Каталог: Полный каталог продукции WAGO .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы WAGO по каталогу и аналогом:
753-430
Technical dataNumber of digital inputs 8 Total number of channels (module) 8 Signal type Digital Signal type (voltage) 24 VDC Sensor connection 8 x (1-wire) Input characteristic high-side switching Input filter (digital) 3ms Input current per channel for signal (1) typ. 2.8mA Voltage range for signal (0) −3 … +5 VDC Voltage range for signal (1) 15 … 30 VDC Input data width (internal) max. 8Bit Supply voltage (system) 5 VDC; via data contacts Current consumption (5 V system supply) 17mA Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) Isolation 500 V system/field Indicators LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7; LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8 Number of incoming power jumper contacts 2 Number of outgoing power jumper contacts 2 Current carrying capacity (power jumper contacts) 10A Connection dataConnection technology: inputs/outputs 8 x CAGE CLAMP® (inputs) Connectable conductor materials Copper Connection type 1 Input Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG Strip length 9 … 10 mm / 0.35 … 0.39 inches Physical dataWidth 12 mm / 0.472 inches Height 100 mm / 3.937 inches Depth 69 mm / 2.717 inches Depth from upper-edge of DIN-rail 61.8 mm / 2.433 inches Mechanical dataMounting type DIN-35 rail Pluggable connector pluggable - Аксессуары и аналоги
-
