Описание:

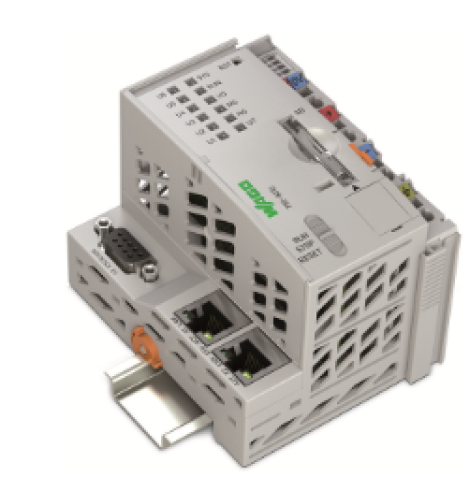

750-8212/025-001 | WAGO | Модуль
Технические характеристики: 750-8212/025-001
CONTROLLER PFC200; 2ND GENERATIO
Программируемые (PLC, PAC)
Серия по производителю WAGO: BACnet, EtherCAT, Ethernet, Modbus, MQTT, RS-232, RS-485, Telecontrol Protocols
Производитель: WAGO .
Каталог: Полный каталог продукции WAGO .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы WAGO по каталогу и аналогом:
750-8212/025-001
Technical dataCommunications Modbus TCP master/slave
Modbus (UDP), WagoAppPlcModbus Library
Modbus (RTU), WagoAppPlcModbus Library
ETHERNET
EtherNet/IPTM Adapter (slave)
EtherNet/IPTM Scanner
EtherCAT® Master
OPC UA Server/Client
OPC UA Pub/Sub (can be installed later)
MQTT
Telecontrol protocols
RS-232 serial interface
RS-485 interface
BACnet/IP, requires an additional licenseETHERNET protocols DHCP
DNS
NTP
FTP
FTPS
SNMP
HTTP
HTTPS
SSHTelecontrol protocols IEC 60870
IEC 61850
DNP3Visualization Web-Visu Operating system Real-time Linux (with PREEMPT_RT patch) CPU Cortex A8; 1 GHz Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD)
Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)Programming environment CODESYS V3.5, Firmware Release 23 or higher
e!COCKPIT (based on CODESYS V3) up to Firmware Release 22
WAGO-I/O-PRO V2.3 (based on CODESYS V2.3), up to Firmware Release 22Configuration options CODESYS V3
e!COCKPIT
WAGO-I/O-CHECK
Web-Based Management
e!RUNTIME library
CODESYS LibraryTransmission rate ETHERNET: 10/100 Mbit/s Transmission medium (communication/fieldbus) ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length Main memory (RAM) 512MB Internal memory (flash) 4096MB Non-volatile hardware memory 128kbyte Program memory CODESYS V2: 16 MB; CODESYS V3: 32 MB Data memory CODESYS V2: 64 MB; CODESYS V3: 128 MB Non-volatile software memory 128kbyte Non-volatile software memory 128.kbyte Type of memory card SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card) Memory card slot Push-push mechanism; Cover lid (sealable) Number of modules per node (max.) 250 Number of modules without a bus extension (max.) 64 Input and output process image (internal) max. 1000 words/1000 words Input and output process image (Modbus®) max. CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words Indicators LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply Supply voltage (system) 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection) Input current (typ.) at nominal load (24 V) 550mA Total current (system supply) 1,700mA Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts Current carrying capacity (power jumper contacts) 10A Number of outgoing power jumper contacts 3 Isolation 500 V system/field Connection dataConnection technology: communication/fieldbus Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-101/-103: 1 x D-sub 9 socket; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 or D-sub 9 socket Connection technology: system supply 2 x CAGE CLAMP® Connection technology: field supply 6 x CAGE CLAMP® Connectable conductor materials Copper Connection type 1 System/field supply Solid conductor 0.08 … 2.5 mm² / 28 … 14 AWG Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 14 AWG Strip length 8 … 9 mm / 0.31 … 0.35 inches Connection technology: device configuration 1 x Male connector; 4-pole Physical dataWidth 78.6 mm / 3.094 inches Height 100 mm / 3.937 inches Depth 71.9 mm / 2.831 inches Depth from upper-edge of DIN-rail 64.7 mm / 2.547 inches - Аксессуары и аналоги
-
