Описание:

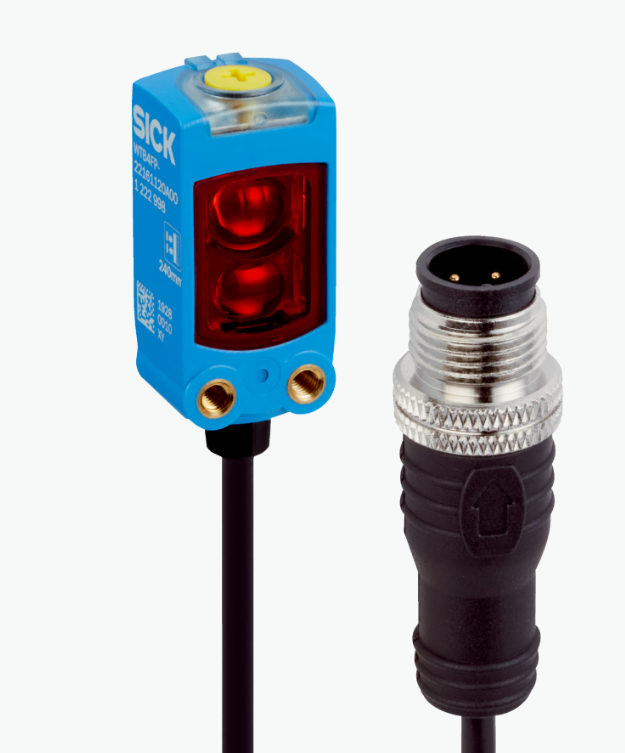

WTV4FE-8416A120A00 | SICK | Датчик (арт.1123755)
Технические характеристики и спецификация: WTV4FE-8416A120A00
MINIATURE PHOTOELECTRIC SENSORS,
Фотоэлектрические датчики
Серия по производителю SICK: W4F
Производитель: SICK .
Каталог: Полный каталог продукции SICK .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SICK по каталогу и аналогом:
WTV4FE-8416A120A00
1123755
Functional principle Photoelectric proximity sensor Functional principle detail Background suppression, V-optics Sensing range Sensing range min. 2 mm Sensing range max. 50 mm Adjustable switching threshold for background suppression 15 mm ... 50 mm Reference object Object with 90% remission factor (complies with standard white according to DIN 5033) Minimum distance between set sensing range and background (black 6% / white 90%) 1 mm, at a distance of 21 mm Recommended sensing range for the best performance 15 mm ... 30 mm Emitted beam Light source PinPoint LED Type of light Visible red light Shape of light spot Rectangular Light spot size (distance) 0.5 mm x 1.9 mm (30 mm) Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.5° (at Ta = +23 °C) Key LED figures Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group marking Free group Wave length 635 nm Average service life 100,000 h at Ta = +25 °C Smallest detectable object (MDO) typ. 0.1 mm (At 30 mm distance (object with 90% remission (complies with standard white according to DIN 5033))) Adjustment Teach-Turn adjustment BluePilot: For setting the sensing range IO-Link For configuring the sensor parameters and Smart Task functions Indication LED blue BluePilot: sensing range indicator LED green Operating indicator
Static on: power on
Flashing: IO-Link modeLED yellow Status of received light beam
Static on: object present
Static off: object not presentSpecial features Pin2 pre-setting (MF): not active Special applications Detecting transparent objects - Аксессуары и аналоги
-
