Описание:

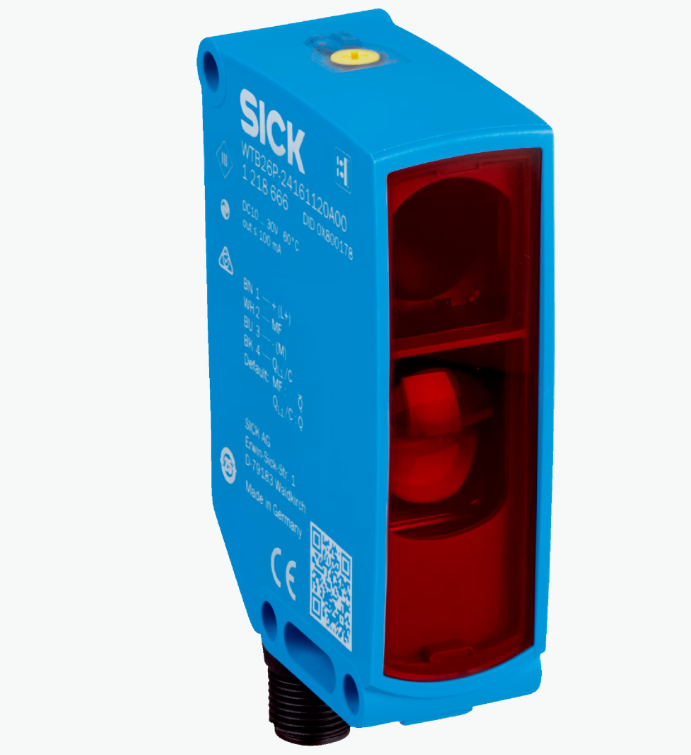

WTB26I-24161420A00 | SICK | Датчик (арт.1222711)
Технические характеристики и спецификация: WTB26I-24161420A00
COMPACT PHOTOELECTRIC SENSORS, W
Фотоэлектрические датчики
Серия по производителю SICK: W26
Производитель: SICK .
Каталог: Полный каталог продукции SICK .
Сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикулы SICK по каталогу и аналогом:
1222711
WTB26I-24161420A00
Operating principle Diffuse reflection sensor Functional principle detail Background suppression Switching distance Switching distance min. 30 mm Switching distance max. 3.000 mm Setting range switching threshold for background suppression 180 mm ... 3.000 mm Reference object Object with 90% remission (corresponds to standard white according to DIN 5033) Minimum distance between set switching distance and background (black 6% / white 90%) 190 mm, at 1000 mm distance Recommended switching distance range for best performance 200 mm ... 1.000 mm Transmission beam Light transmitter LED Light art Infrared light Light spot shape Dotted Light spot size (distance) Ø 14 mm (1.000 mm) Maximum scattering of the transmitted beam around the normalized transmission axis (squint angle) < +/- 1.0° (bei T U = +23 °C) LED characteristics Normative reference EN 62471:2008-09 | IEC 62471:2006, modified LED risk group labeling Free group wavelength 850 nm Average lifespan 100,000 hours at T U = +25 °C Attitude Push-turn element BluePilot: for adjusting the switching distance IO-Link For setting sensor parameters and smart task functions Advertisement LED blue BluePilot: Switching distance display LED green Power indicator
Static on: Power on
Flashing: IO-Link modeLED yellow Light reception status
Static on: Object present
Static off: Object not present - Аксессуары и аналоги
-
