DMC1386 | DMC | Набор инструмента (Код: )

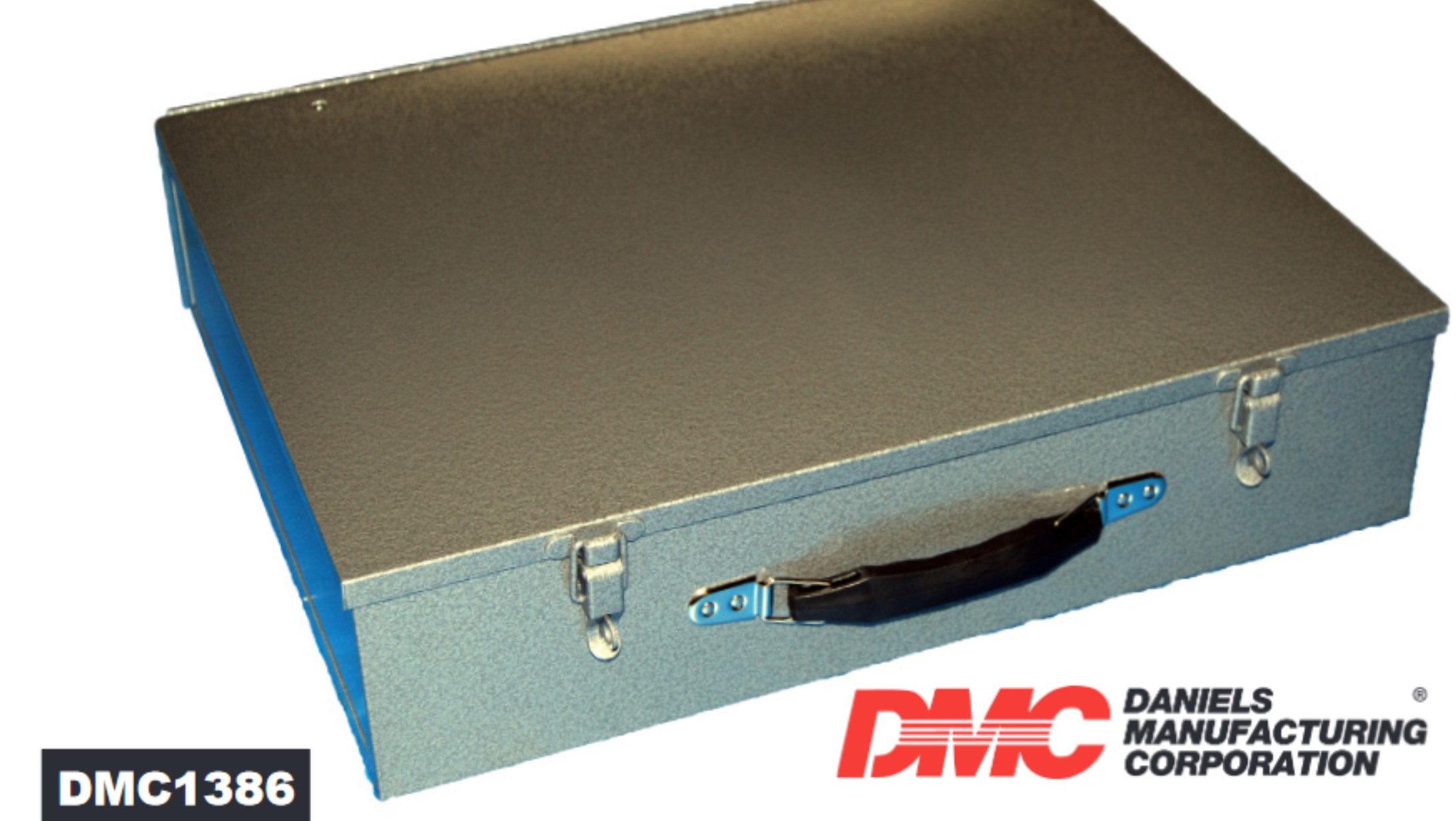

DMC1386 M22520/2-01 thru M22520/2-18 Maintenance Tool Kit.

The DMC1386 tool kit contains the M22520/2-01 tool frame, tool gage, and 17 mil-spec positioners. Also included in the DMC1386 are tool instruction sheets.

Qualified to MIL-DTL-22520/2, the DMC M22520/2-01 was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame.

The M22520/2-01 accepts the entire middle wire range of 16 through 28 AWG, with positioners which adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.

Type of Case:  Portable
Number of Cases:  1
Color:  Grey
Type of Construction:  Steel/Aluminum
Application:  Crimp Tool Kit
Type of Inserts:  Unicellular Polyehtylene Foam with Die Cut Tool Cavitites
