- Описание
-
Описание:

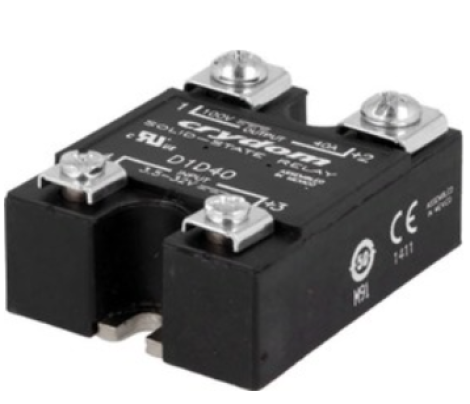

D1D40 | Crydom | Реле
Технические характеристики: D1D40
Твердотельные реле — промышленное твердотельное реле, панельный монтаж, IP00, 100 В пост. тока/12 А, вход 3,5–32 В пост. тока, выход на полевых транзисторах, со стойкамиПроизводитель: Sensata Technologies – Crydom.
Сроки поставки 5-8 недель.
Точные сроки и цену уточняйте у наших менеджеров.
Артикул по производителю:
D1D40
Технические данные:
Brand: Crydom Contact Form: SPST(1 Form A) Control Voltage Range: 3.5 VDC to 32 VDC Factory Pack Quantity: Factory Pack Quantity: 20 Input Current: 10 mA to 15 mA IP Rating: IP00 Load Current Rating: 40 A Load Voltage Rating: 1 VDC to 100 VDC Manufacturer: Sensata Maximum Operating Temperature: +100 C Minimum Operating Temperature: -40 C Mounting Style: Panel Mount Output Type: MOSFET Package / Case: Hockey Puck Product Category: Solid State Relays-Industrial Mount Product Type: SSR-Solid State Relays Product: Solid State Relays Relay Contact Form: 1 Form A(SPST-NO) Series: 1-DC Subcategory: Relays Termination Style: Screw Type: Controller Control Voltage Range 3.5 → 32 V dc Load Voltage Range 0 → 100V dc Maximum Control Voltage 32 V Maximum Load Current 40 A Maximum Load Voltage 100 V Maximum Operating Temperature +80°C Minimum Control Voltage 3.5 V dc Minimum Load Current 1 mA Minimum Operating Temperature -20°C Mounting Type Surface Mount Off State Leakage Current 0.1 mA Operating Temperature Range -20 →+80°C Output Device MOSFET Series 1-DC Standards Met UL Contact Form SPST(1 Form A) Factory Pack Quantity 20 Input Current 10 mA to 15 mA IP Rating IP00 Load Current Rating 40 A Load Voltage Rating 1 VDC to 100 VDC Mounting Style Panel Mount Output Type MOSFET Package - Case Hockey Puck Product Solid State Relays Relay Contact Form 1 Form A(SPST-NO) Selling Alternatives D1D40L Termination Style Screw Type Controller Approval Agency CE, cURus Circuit SPST-NO(1 Form A) Load Current 40 A On-State Resistance (Max) 50 mOhms Operating Temperature -40°C ~ 100°C Package / Case Hockey Puck Voltage - Input 3.5 ~ 32VDC Voltage - Load 1 V ~ 100 V Assembly PCB mounting Control Voltage 3.5-32 VDC LED display No Rated current 40 A Voltage 1-100 VDC Вес, г 114 - Аксессуары и аналоги
-
