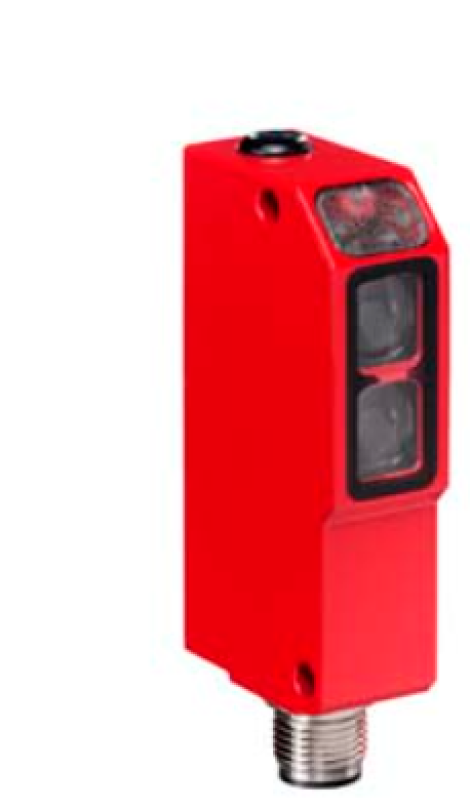

FRKR 95/44-350 | Leuze Electronic | Датчик (арт. 50034514)
Технические характеристики FRKR 95/44-350 L :
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
FRKR 95/44-350
50034514
series 95 Operating principle tactile principle with background suppression Operating range guaranteed range Operating range, white 90% 0.005 ... 0.35 m operating range, gray 18% 0.02 ... 0.328 m operating range, black 6% 0.025 ... 0.3 m Limit range, white 90% 0.005 ... 0.5 m Limit range, gray 18% 0.02 ... 0.44 m Limit range, black 6% 0.025 ... 0.35 m limit range typical range light source LED, red wavelength 660 nm LED group 1 type of light spot geometry rectangular protective circuit short-circuit protection reverse polarity
protectionsupply voltage U B 10 ... 30 V, DC residual ripple 0 ... 15 %, from U B No-load current 0 ... 35 mA number of digital switching outputs 2 pcs. switching element Transistor, PNP switching principle light-switching switching element Transistor, PNP switching principle dark switching Switching frequency 1,000 Hz response time 0.5 ms standby delay 100 ms function Signal OUT
power supplytype of connection round plug thread size M12 type male material stainless steel number of poles 4-pin coding A-coded Dimensions (W x H x L) 17 mm x 66 mm x 35 mm Housing material metal Metal housing zinc material optics cover Glass net weight 90 g Color housing red type of fastening Through-hole fastening Type of ad LED Controls multi-speed spindle ambient temperature operation -25 ... 60 °C ambient temperature storage -40 ... 70 °C Protection class IP67 Protection class II valid standards IEC 60947-5-2 - Аксессуары и аналоги
-
