| HT5.1/4X-M8.3 | Leuze Electronic | Датчик (арт. 50142519) | Datasheet Инструкция (Скачать PDF) |
- Описание
-
Описание:

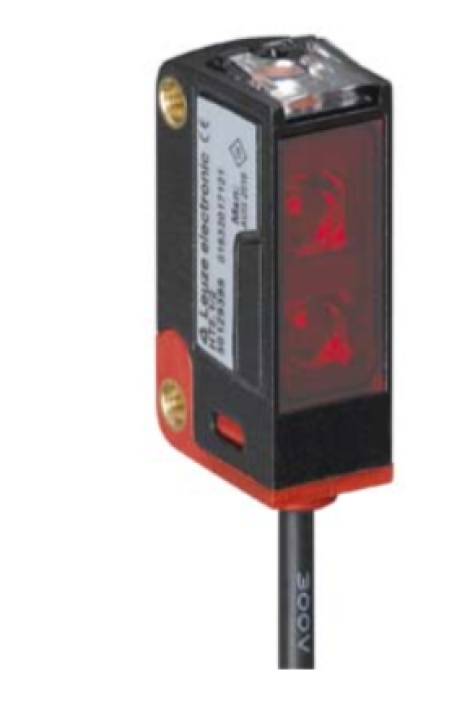

HT5.1/4X-M8.3 | Leuze Electronic | Датчик (арт. 50142519)
Технические данные:
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
HT5.1/4X-M8.3
50142519
Series 5 Operating principle Diffuse reflection principle with background suppression Black-white error < 15% up to 200 mm Operating range Guaranteed operating range Operating range, white 90% 0.005 ... 0.4 m Operating range, gray 18% 0.01 ... 0.3 m Operating range, black 6% 0.015 ... 0.2 m Operating range limit 0.005 ... 0.4 m Operating range limit Typical operating range Adjustment range 15 ... 400 mm Beam path Focused Light source LED, Red Wavelength 645 nm LED group Exempt group (in acc. with EN 62471) Type of light spot geometry Round Focus Fixed Focal distance 200 mm Protective circuit Polarity reversal protection
Short circuit protectedSupply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 15 mA Number of digital switching outputs 1 Piece(s) Switching element Transistor, PNP Switching principle Light switching Switching frequency 1,000 Hz Response time 0.5 ms Readiness delay 300 ms Function Signal OUT
Voltage supplyType of connection Connector Thread size M8 Type Male Material Plastic No. of pins 3 -pin Dimension (W x H x L) 11.4 mm x 32.1 mm x 17.8 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic / PMMA Net weight 10 g Housing color Black
RedType of fastening Two M3 threaded sleeves
Via optional mounting deviceType of display LED Operational controls Multiturn potentiometer Function of the operational control Range adjustment Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 - Аксессуары и аналоги
-
