Описание:

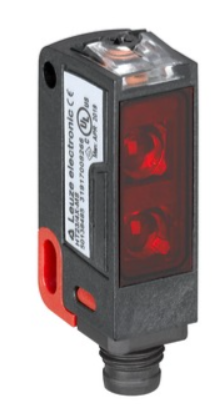

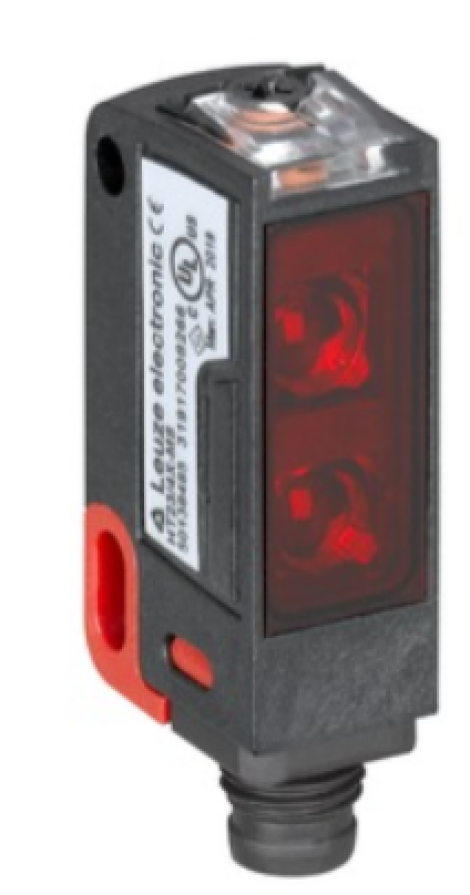

HT23/PX-M8 | Leuze Electronic | Датчик (арт 50138489)
Технические данные: HT23/PX-M8
Производитель: Leuze Electronic
Сроки поставки: 7-9 недель
Является аналогом:HT23/PX-M850138489series 23 functional principle tactile principle with background suppression black-and-white error < 15% up to 200 mm operating range guaranteed range Operating range, white 90% 0.005 ... 0.4 m operating range, gray 18% 0.01 ... 0.3 m operating range, black 6% 0.015 ... 0.2 m limit range 0.005 ... 0.4 m limit range typical range adjustment range 15 ... 400 mm beam path focused light source LED, red wavelength 645 nm LED group Free group (according to EN 62471) type of light spot geometry around focus fix focus distance 200 mm protective circuit short-circuit protection reverse polarity
protectionsupply voltage U B 10 ... 30 V, DC, including residual ripple residual ripple 0 ... 15 %, from U B no-load current 0 ... 15 mA number of digital switching outputs 1 pc. switching element transistor, PNP switching principle dark switching switching frequency 1,000 Hz response time 0.5 ms standby delay 300 ms function Signal OUT
power supplytype of connection round plug thread size M8 type male material plastic number of poles 4-pin Dimensions (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm Housing material plastic plastic housing PC-ABS material optics cover plastic / PMMA net weight 10 g Color housing red
blacktype of fastening via optional mounting part type of ad LED controls multi-speed spindle function of the control element sensing range adjustment ambient temperature operation -40 ... 60 °C ambient temperature storage -40 ... 70 °C protection class IP 67 protection class III approvals c UL US valid standards IEC 60947-5-2 - Аксессуары и аналоги
-
