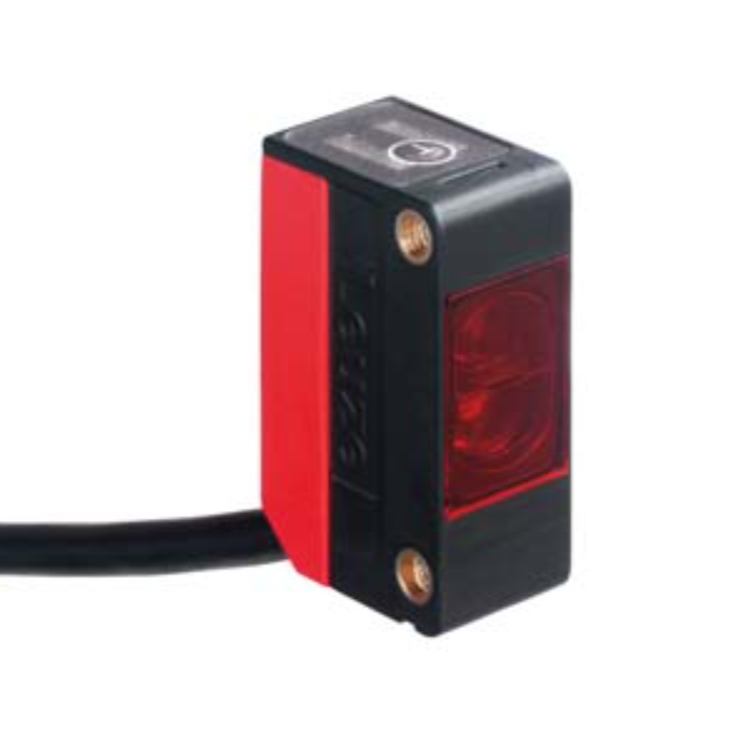

ET5.3/4P | Leuze Electronic | Датчик (арт. 50122579)
Технические данные:
Производитель: Leuze Electronic
Сроки поставки: 6-8 недель
Series 5 Operating principle Diffuse reflection principle Operating range Guaranteed operating range Operating range, white 90% 0.001 ... 0.7 m Operating range, gray 50% 0.001 ... 0.59 m Operating range, gray 18% 0.003 ... 0.39 m Operating range, black 6% 0.005 ... 0.28 m Operating range limit, white 90% 0 ... 1 m Operating range limit, gray 50% 0.001 ... 0.85 m Operating range limit, gray 18% 0.003 ... 0.55 m Operating range limit, black 6% 0.002 ... 0.4 m Operating range limit Typical operating range Light source LED, Red Wavelength 620 nm LED group Exempt group (in acc. with EN 62471) Protective circuit Polarity reversal protection
Short circuit protectedSupply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of digital switching outputs 2 Piece(s) Switching element Transistor, PNP Switching principle Light switching Switching element Transistor, PNP Switching principle Dark switching Switching frequency 500 Hz Response time 1 ms Readiness delay 300 ms - Аксессуары и аналоги
-
