| GS 63B/6.3-S8V | Leuze Electronic | Раздвоенный фотоэлектрический датчик (арт. 50128005) | Datasheet Инструкция (Скачать PDF) |
- Описание
-
Описание:

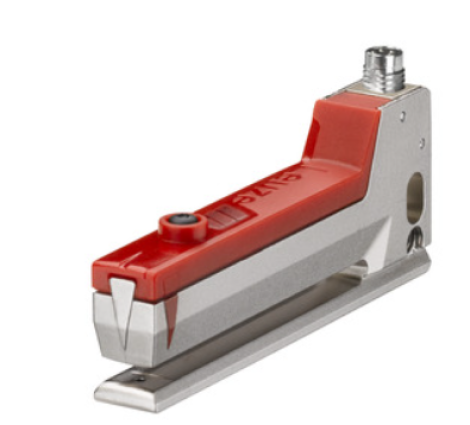

GS 63B/6.3-S8V | Leuze Electronic | Фотоэлектрический датчик (арт. 50128005)
Технические характеристики GS 63B/6.3-S8V :
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению: GS 63B/6.3-S8V
series 63 physical principle optically application detection of non-transparent labels Label width, min. 2 mm Label gap, min. 2 mm medium not transparent special version teach input light source LED, infrared wavelength 940 nm transmission signal form pulsed protective circuit short-circuit protection reverse polarity
protectionsupply voltage U B 10 ... 30 V, DC residual ripple 0 ... 15 %, from U B no-load current 0 ... 30 mA number of teach inputs 1 pc. Art teach input voltage type DC switching voltage high: ≥8V
low: ≤ 2 Vswitching state active high number of digital switching outputs 1 pc. Art Digital switching output voltage type DC switching current, max. 100 mA switching voltage high: ≥(U B -2V)
low: ≤ 2 Vswitching element transistor, push-pull switching principle switching signal in label gap switching frequency 10,000 Hz response time 0.05 ms standby delay 300 ms Max. belt speed during teach-in 20 m/min number of connections 1 pc. function Signal OUT
Power supply
Teach inputtype of connection round plug thread size M8 type male material metal number of poles 4-pin plug outlet vertical (perpendicular to the tape path) design Fork mouth width 3 mm mouth depth 61 mm Dimensions (W x H x L) 11 mm x 30 mm x 80 mm Housing material plastic
metalmetal housing zinc die-cast chemically nickel-plated plastic housing PC material optics cover plastic/PC net weight 55 g Color housing red
silvertype of fastening Through-hole fastening
via optional fastening parttype of ad LED number of LEDs 3 pieces controls teach button ambient temperature operation -20 ... 60 °C ambient temperature storage -30 ... 70 °C protection class IP 67 protection class III approvals c UL US valid standards IEC 60947-5-2 customs tariff number 85365019 ECLASS 5.1.4 27270909 ECLASS 8.0 27270909 ECLASS 9.0 27270909 ECLASS 10.0 27270909 ECLASS 11.0 27270909 ECLASS 12.0 27270909 ECLASS 13.0 27270909 ECLASS 14.0 27270909 ECLASS 15.0 27270909 ETIM 5.0 EC002720 ETIM 6.0 EC002720 ETIM 7.0 EC002720 ETIM 8.0 EC002720 ETIM 9.0 EC002720 ETIM 10.0 EC002720 - Аксессуары и аналоги
-
