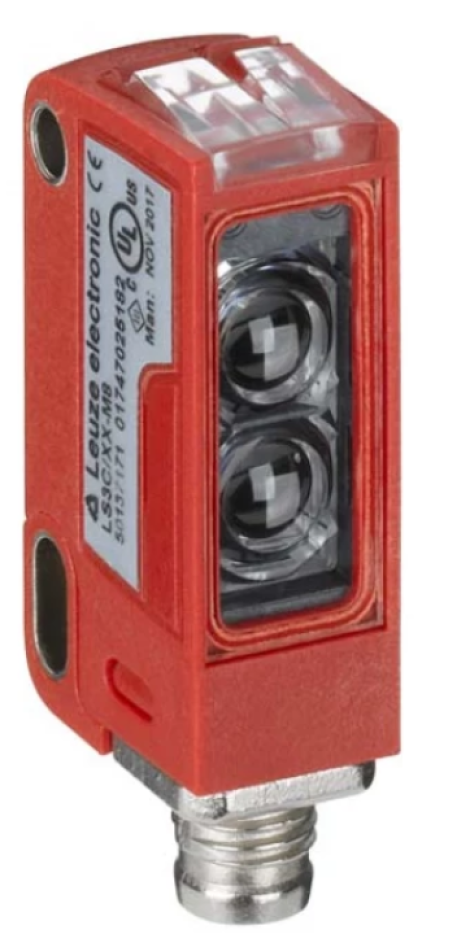

LS3C/8X-M8 | Leuze Electronic | Фотоэлектрический датчик (арт. 50137173)
Технические характеристики LS328/9D | Leuze Electronic Фотоэлектрический датчик (арт. 50122703) :
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
LS3C/8X-M8
50137173
Series 3C Operating principle Throughbeam principle Device type Transmitter Special version Activation input Operating range 0.05 ... 8.5 m Operating range Guaranteed operating range Operating range limit 0.05 ... 10 m Operating range limit Typical operating range Beam path Divergent Light source LED, Red Wavelength 632 nm LED group Exempt group (in acc. with EN 62471) Light spot size [at sensor distance] 4 mm [100 mm] Type of light spot geometry Round Protective circuit Polarity reversal protection
Short circuit protectedSupply voltage UB 10 ... 30 V, DC, Incl. residual ripple Residual ripple 0 ... 15 %, From UB Open-circuit current 0 ... 20 mA Number of activation inputs 1 Piece(s) Readiness delay 300 ms Function Signal IN
Voltage supplyType of connection Connector Thread size M8 Type Male Material Metal No. of pins 4 -pin Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm Housing material Plastic Plastic housing PC-ABS Lens cover material Plastic / PMMA Net weight 10 g Housing color Red Type of fastening Through-hole mounting
Via optional mounting deviceCompatibility of materials ECOLAB Type of display LED Ambient temperature, operation -40 ... 60 °C Ambient temperature, storage -40 ... 70 °C Degree of protection IP 67
IP 69K - Аксессуары и аналоги
-
