Описание:

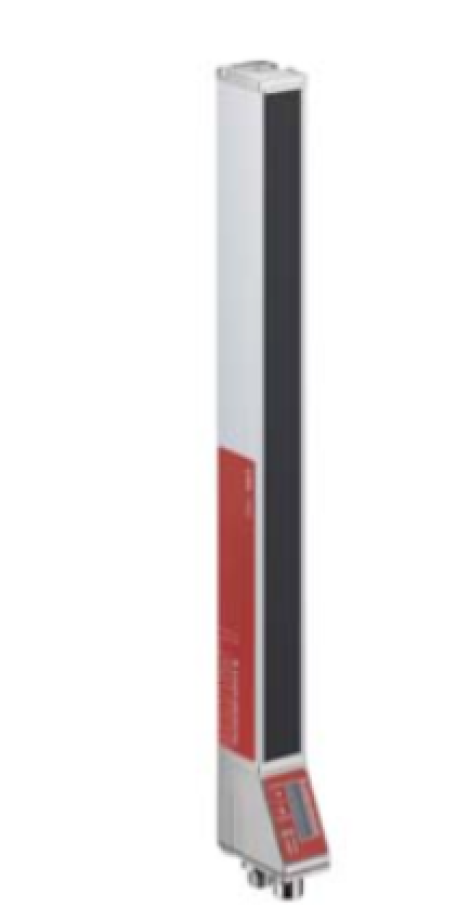

CML720i-R05-560.A/CN-M12 | Leuze Electronic | Передатчик света (арт. 50119612)
Технические характеристики CML720i-R05-560.A/CN-M12
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
50119374
CML720i-T05-560.A-M12
Series 720 Operating principle Throughbeam principle Device type Receiver Contains 2x BT-NC sliding block Application Object measurement Special version Crossed-beam scanning
Diagonal-beam scanning
Parallel-beam scanningOperating range 0.1 ... 3.5 m Measurement field length 560 mm Number of beams 112 Piece(s) Beam spacing 5 mm Minimum object diameter 10 mm Supply voltage UB 18 ... 30 V, DC Number of inputs/outputs selectable 2 Piece(s) Type Inputs/outputs selectable Cycle time 3.76 ms Response time per beam 30 µs Type CANopen Function Process Type IO-Link Number of connections 2 Piece(s) Plug outlet Axial Function Configuration interface
Connection to transmitter
Signal IN
Signal OUT
Voltage supplyType of connection Connector Thread size M12 Material Metal No. of pins 8 -pin Function BUS IN
BUS OUTType of connection Connector Thread size M12 Material Metal No. of pins 5 -pin Dimension (W x H x L) 29 mm x 35.4 mm x 635 mm Housing material Metal Metal housing Aluminum Lens cover material Plastic Net weight 800 g Type of display LED
OLED displayType of configuration Software
Teach-inOperational controls Membrane keyboard Ambient temperature, operation -30 ... 60 °C Degree of protection IP 65 Protection class III Approvals c UL US Standards applied IEC 60947-5-2 - Аксессуары и аналоги
-
