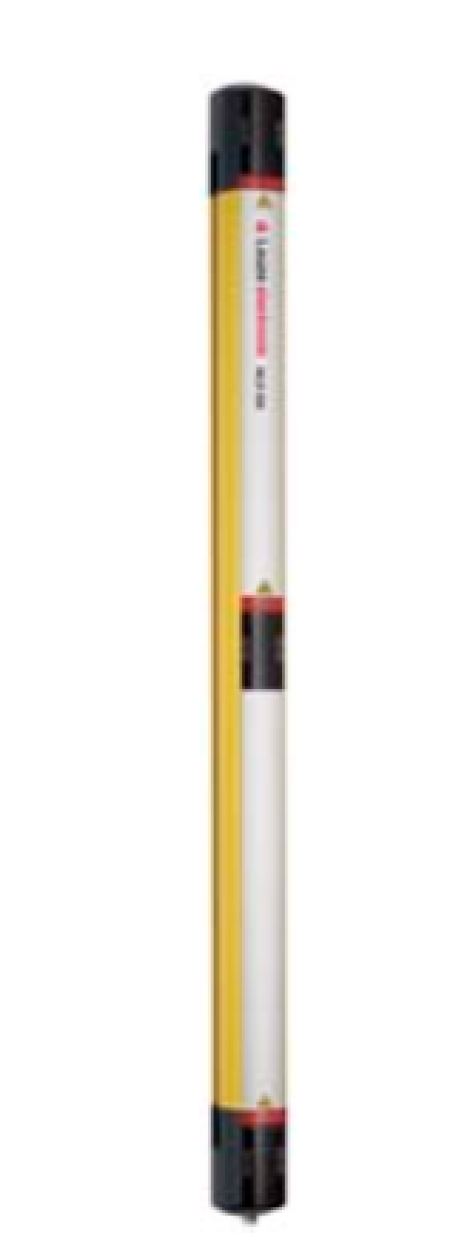

MLD500-T3L/A | Leuze Electronic | Барьер (арт.66502201)
Технические характеристики: MLD500-T3L/A
Multi-beam safety light barrier transmitter
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
MLD500-T3L/A
66502201
series MLD 500 Device type Sender Special version Integrated laser alignment aid Functions Range reduction integrated laser alignment aid Yes type 4, IEC/EN 61496 SIL 3, IEC 61508 SILCL 3, IEC/EN 62061 MTTF d 204 years, EN ISO 13849-1 Service life 20 years, EN ISO 13849-1 reach 0.5 ... 50 m Number of rays 3 pcs. Beam spacing 400 mm light source LED, infrared wavelength 850 nm Transmission signal form continuously LED risk group Free group (according to EN 62471:2008) Laser alignment aid light color Laser, red Laser alignment aid light wavelength 650 nm Laser alignment aid class 2, IEC 60825-1:2014 / EN 60825-1:2014+A11:2021 Laser alignment aid transmission signal shape continuously Laser alignment aid transmission power 1,000 µW Supply voltage U B 26.5 ... 31.6 V Current consumption from AS-i circuit 50 mA Type AS-Interface Safety at Work function process AS-i profile S-7.B.1 Slave address 1..31 programmable, default=0 Cycle time according to AS-i specification max. 5 ms ms Number of connections 1 pc. function Machine interface Type of connection Round plug Thread size M12 material metal Number of poles 5-pin Dimensions (W x H x L) 52 mm x 900 mm x 64.7 mm Housing material metal Metal housing aluminum Material optics cover Plastic / PMMA Material end caps zinc die-casting Net weight 2,000 g Housing color yellow, RAL 1021 Type of fastening Rotating
bracket groove mountingType of ad LED Number of LEDs 3 pcs. Ambient operating temperature -30 ... 55 °C Ambient temperature storage -40 ... 75 °C Relative humidity (non-condensing) 0 ... 95% Protection class IP67 - Аксессуары и аналоги
-
