- Описание
-
Описание:

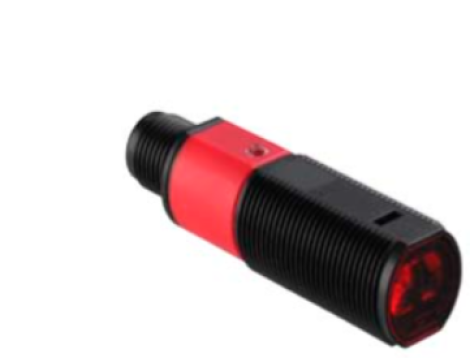

PRK318B/4P-M12 | Leuze Electronic | Датчик (арт.50116859)
Технические характеристики PRK318B.W/4P-M12 :
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
PRK318B/4P-M12
50116859
Series 318B functional principle reflection principle operating range 0.02 ... 4.5 m, with Reflector TK(S) 100x10 operating range guaranteed range limit range 0.02 ... 6 m, with Reflector TK(S) 100x100 limit range typical range light source LED, root wavelength 620 nm LED group Free group (according to EN 62471) protective circuit short-circuit protection reverse polarity
protectionsupply voltage U B 10 ... 30 V, DC, including residual ripple residual ripple 0 ... 15 %, from U B no-load current 0 ... 15 mA number of digital switching outputs 2 St. switching element Transistor, PNP switching principle light-switching switching element Transistor, PNP switching principle dark switching switching frequency 500 Hz response time 1 ms standby delay 300 ms function Signal OUT
Voltage supplytype of connection round plug thread size M12 Type male material plastic number of poles 4-pin coding A-coded Dimensions (Ø x L) 18 mm x 46 mm thread size M18 x 1 mm Housing material plastic plastic housing ABS material optics cover plastic net weight 20 g Color housing rot
schwarztype of ad LED ambient temperature operation -40 ... 60 °C ambient temperature storage -40 ... 70 °C protection class IP 67 protection class III approvals c UL US valid standards IEC 60947-5-2 - Аксессуары и аналоги
-
