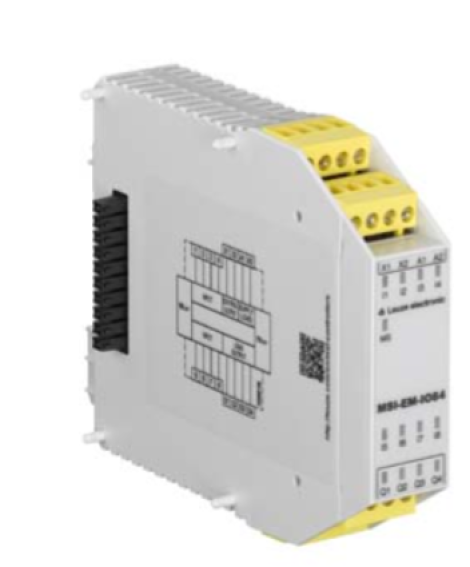

MSI-EM-IO84-01 | Leuze Electronic | Реле безопасности (арт. 50132990)
Технические характеристики MSI-EM-IO84-01
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
MSI-EM-IO84-01
50132990
Series MSI-EM Type Safe I/O module Application Monitoring of safety functions Number of safe I/Os 8 IN, 4 OUT Functions Extension module for the MSI 400 configurable safety control
Extension with 8 safe inputs and 4 safe outputs (OSSDs)SIL 3, IEC 61508 SILCL 3, IEC/EN 62061 Performance Level (PL) e, EN ISO 13849-1 PFHD 6E-09 per hour Mission time 20 years, EN ISO 13849-1 Category 4, EN ISO 13849 Supply voltage UB 24 V, DC, -30 ... 25 % Power consumption, max. 1.1 W Number of outputs 4 Piece(s) Type of digital output Transistor Short circuit protection, outputs Yes Min. voltage permitted at the output 16.8 V Max. voltage permitted at the output 30 V Number of inputs 8 Piece(s) Voltage permitted at the input 30 V Input current at signal 1 8 mA Type Internal bus (SBUS+) Number of connections 1 Piece(s) Function Signal IN
Signal OUT
Voltage supplyType of connection Terminal Type of terminal Screw terminal No. of pins 16 -pin Connection cross sections 1 x 0.2 to 2.5 mm², wire
1 x 0.25 to 2.5 mm², wire with wire-end sleeve
2 x 0.2 to 1.0 mm², wire
2 x 0.25 to 1.0 mm², wire with wire-end sleeveDimension (W x H x L) 22.5 mm x 96.5 mm x 120.8 mm Net weight 180 g Housing color Gray Type of fastening Snap-on mounting Ambient temperature, operation -25 ... 65 °C Ambient temperature, storage -25 ... 70 °C Relative humidity (non-condensing) 10 ... 95 % Degree of protection IP 20 (terminals)
IP 40 (housing)Protection class III Approvals TÜV Rheinland
c UL USVibration resistance 5 ... 500 Hz Test procedure for oscillation in accordance with standard EN 60068-2-6 Shock resistance, continuous shock 10 g, 16 ms, EN 60068-2-29 Shock resistance, single shock 30 g, 11 ms, EN 60068-2-27 - Аксессуары и аналоги
-
