Описание:

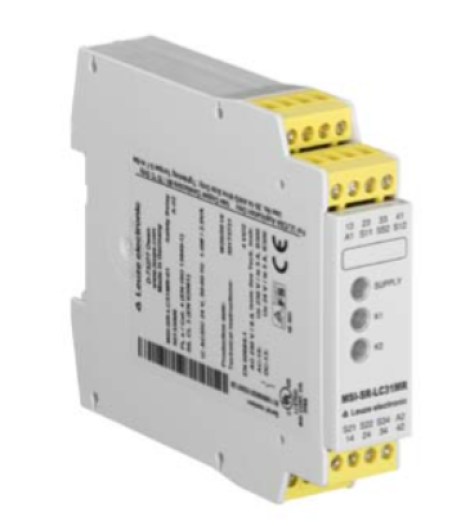

MSI-SR-LC31MR-01 | Leuze Electronic | Реле (арт. 50133006)
Технические характеристики: MSI-SR-LC31MR-01
Производитель: Leuze Electronic
Обычные сроки поставки: 7-9 недель
Для уточнения точных сроков и цены, свяжитесь с нашими сотрудниками
Артикул по совпадению:
MSI-SR-LC31MR-01
50133006
series MSI-SR-LC31 application Magnetic switches (reed contacts, equivalent)
Emergency stop circuits
Optoelectronic protective devices
Position switches (mechanical contacts)
Transponder switches (OSSD outputs)Functions Cross-circuit monitoring Restart manually SIL 3, IEC 61508 SILCL 3, IEC/EN 62061 Performance Level (PL) e, EN ISO 13849-1 PFH D 3E-08 per hour Service life 20 years, EN ISO 13849-1 category 4, EN ISO 13849-1 Continuous current per current path, max. 8 A Supply voltage U B 24 V, AC/DC, -15 ... 10 % Power consumption, max. 1.6 W, at 24 V plus output load Nominal voltage U N 24 V Nominal frequency 50 ... 60 Hz Rated control supply voltage U S at AC 60 Hz 20.4 V Rated control supply voltage U S at AC 50 Hz 26.4 V Max. rated control supply voltage at AC 50 Hz 26.4 V Min. rated control supply voltage U S at AC 50 Hz 20.4 V Min. rated control supply voltage U S at DC 20.4 V Max. rated control supply voltage at DC 26.4 V Min. rated control supply voltage at DC 20.4 V Rated power AC 2.9 V A Rated power DC 1.6 W Galvanic isolation supply circuit - control circuit Yes (at U N ≥ AC 42-48 V, AC 115-230 V, AC 230 V) Number of outputs, safety-related, instantaneous, contact-based 3 pcs. Number of outputs, safety-related, delayed, contact-based 0 pcs. Number of outputs, signaling function, instantaneous, contact-based 1 pc. Enabling current paths closer Signaling current paths opener Contact material Ag alloy, gold-plated Usage category AC-15 (normally open) Ue 230V, Ie 3A Usage category DC-13 (normally open) Ue 24V, Ie 3A Short-circuit protection (normally open) Fuse 6 A Class gG, melting integral Rated switching voltage, enabling current paths AC 230 V Rated switching voltage, signaling current paths AC 230 V Max. thermal continuous current I th , enabling current paths 8 A Max. thermal continuous current I th ,signaling current paths 5 A Max. total current I² of all current paths 25 A² Mechanical life 100,000,000 switching cycles Evaluation of inputs two-channel Nominal output voltage DC 24 V Input current at control inputs (safety circuit/reset circuit) 25 mA Max. peak current at control inputs (safety circuit/reset circuit) 100 mA Max. line resistance, per channel ≤ (5 + (1.176 x U B / U N - 1) x 100) Ω Min. duty cycle 100 ms Response time (Manual start t A1 ) 100 ms Permissible test pulse time t TP 1 ms Fallback time t R 10 ms Recovery time t W 750 ms function Signal IN
Signal OUT
Power supplyType of connection clamp Type of clamp screw terminal Number of poles 16-pin Connection cross-sections 1 x 0.2 to 2.5 mm², solid wire
1 x 0.2 to 2.5 mm², stranded wire
1 x 0.25 to 2.5 mm², stranded wire with wire end ferrule
2 x 0.2 to 1.0 mm², solid wire
2 x 0.2 to 1.0 mm², stranded wire
2 x 0.25 to 1.0 mm², stranded wire with wire end ferruleDimensions (W x H x L) 22.5 mm x 96.5 mm x 114 mm Net weight 210 g Housing color gray Type of fastening Snap fastening Ambient operating temperature -25 ... 65 °C - Аксессуары и аналоги
-
